CHY-M1712 Laboratory high temperature 1700 degree

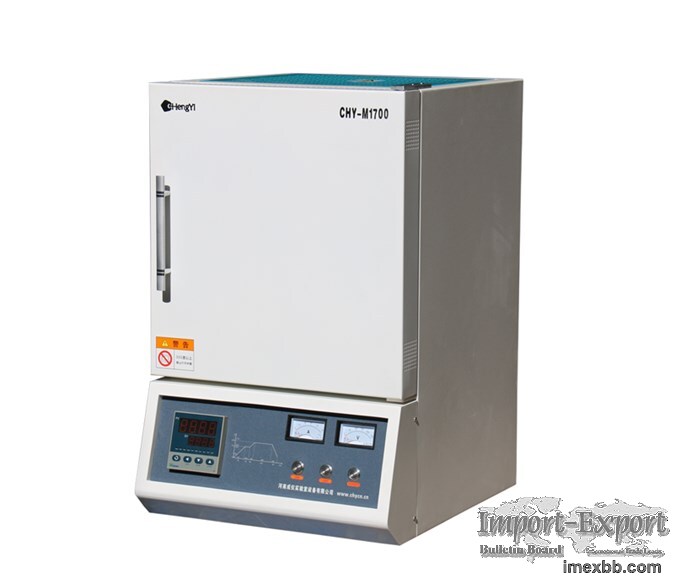

CHY-M1712 Laboratory high temperature 1700 degree 1.7L muffle furnace
Laboratory Furnace Manufacturer

1.120*120*120mm chamber dimension
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
5.Made by Henan Chengyi

Laboratory Furnace APPLICATION
1.Laboratory heat thermal processing cement, building materials industry etc
2.Pharmaceutical medicines inspection, preteatment of medical sample
3.Analytical Chemistry Industry: water analysis and environmental analysis
4.Analysis of coal quality,determine moisture, ash, volatile matter, ash
melting point analysis, gray component analysis, and elemental analysis

PRODUCT PARAMETERS
1 Product Name 1700 Degree Muffle Furnace
2 Model M1712
3 Furnace Door side open type
4 Display Model Highlight LED display
5 Maximum Temperature 1650℃
6 Working Temperature ≤1650℃
7 Heating rate ≤20℃/min  Suggest:10℃/min
8 Heating zones Single heating zone
9 Hearth dimensions 120mm×120mm×120mm
10 Hearth volume 1.7L
11 Control mode Intelligent PID auto control
12 Temperature Accuracy ±1℃
13 Temperature curve 30 segments programmable
14 Over heat alarm Have
15 Overcurrent protection Have
16 Thermocouple Failure Protection Have
17 Temperature Sensor B-type thermocouple
18 Heating Element MoSi2 Heating Rod
19 Hearth Material high purity alumina fiber
20 After-sales service 12 month warranty, durable maintaince and
repair support
21 Power Supply 220V  50HZ
22 Rated power 1.8kw
23 Overall dimensions 390×430×630 (mm )
24 Packing 3-ply wooden case
25 Accessories Plate,Protective Glove,Crucible Tong,Crucible,Door
Block,Heating Element
,Temperature Sensor,User Manual.

Our website: www.hnchengyi.com

Minimum Order: 1 sets
