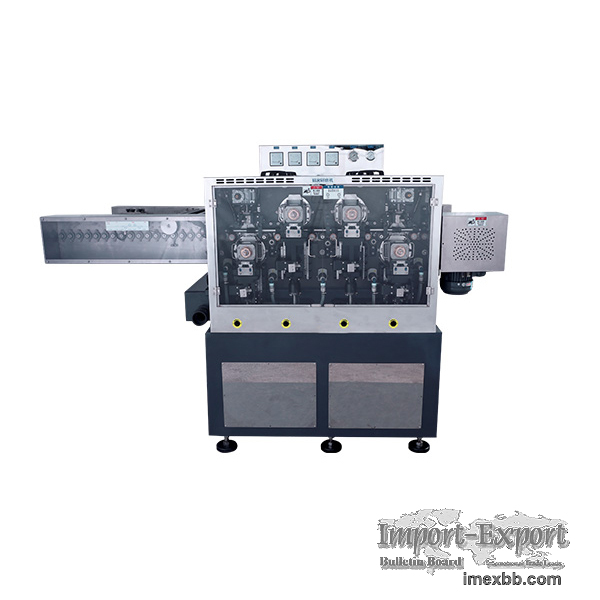

CJM Ultra Precision Scrubbing Machine

Name TSP
CJM2/4-75 S/Z CJM2/4-85 S/Z
Appearance Size L1876mm*W1640mm*H1600士25mm
L2437mm*W1705mm*H1 , 600士25mm L1876mm*W1705mm*H1600士25mm
L2437mm*W1640mm*H1 , 600士25mm
Max CJM214-75S/Z: 680mm*680mm CJM2/4-855/Z:762mm*762mm
Min 220mm* 220mm
Substrate Thickness 0.2~ 3.2mm /0.5~ 10.0mm
Production Speed 1.5~3.0M/Min adjustable speed range 1.0~5.0 M/Min
Total weight of the machine About 3.0T(4-axis)
Applicable Process Resin Plug Hole Grinding, Deburring, Removing Copper
Particles, Dry Film Pre-treatment
