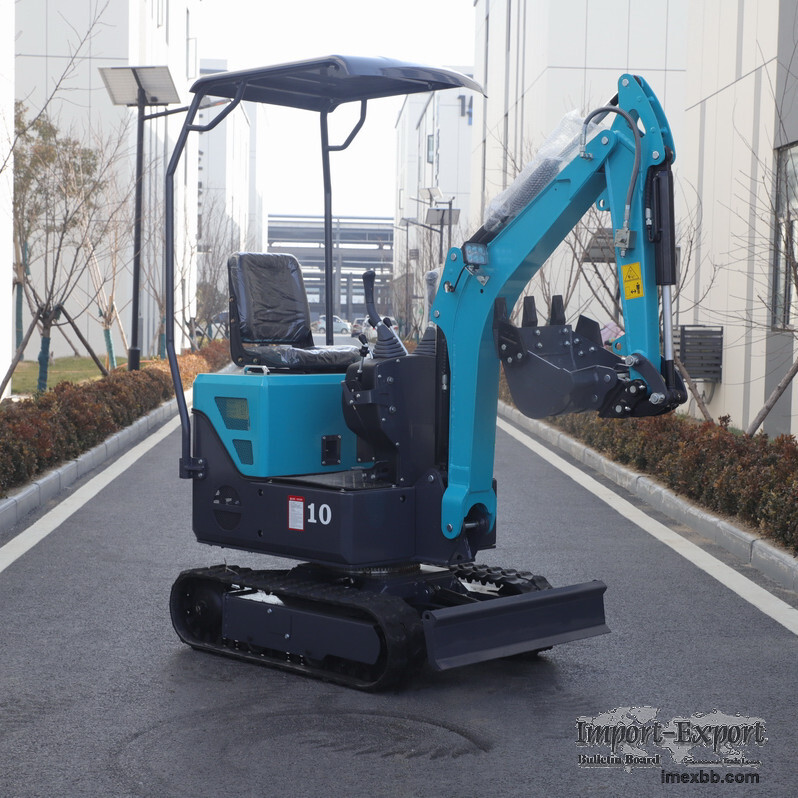

Compact Excavator Model TC10BD

Application:
It is used in various working environments such as gardens, farms, indoor
demolition, road repair, concrete crushing, cable burial, water pipe laying,
gardening, construction projects, etc. It has multiple functions such as
digging, crushing, ditch clearing, drilling, and bulldozing.

Feature:
1. The travel motor is enclosed inside to better protect the motor from damage
and extend its service life.
2. The four-post ceiling is more stable and safer.
3. Constructed from high-quality, thickened steel and treated with a powder-
coating process for rust and corrosion resistance.
4. The hydraulic cylinder is equipped with a cylinder guard to protect it from
damage.
5. With 360-degree body rotation, its agile chassis brings convenience to
outdoor operations.

Main Technical Parameters:
Spec: Rubber Track
Weight:
Gross Weight: 775 kg
Engine:
Type : Air-cooled
Model: KOOP 192FA
Rated Output Power/RPM:7.6 (10) 3000 kW (HP)/rpm
Track:
Track Size : 180*72*37
Track Width: 180 mm
Bucket:
Standard Bucket Capacity: 0.025m³
Standard Bucket Width: 400mm
Working Performance:
Max Digging Force (Bucket): 6 KN
Max Digging Depth: 1735mm
Max Vertical Digging Depth: 1580 mm
Max Digging Height: 2700 mm
Max Dumping Height: 1845 mm
Max Digging Reach at Ground Level: 3060 mm
Min Front Swing Radius mm 1295
Speed:
Travel Speed: 1.8 Km/h
Swing Speed: 9.5 rpm
Hydraulic System:
Pump Type: Plunger Pump
Pump Flow: 30 L/min
System Pressure: 18 MPa
Fuel Tank Capacity:
Diesel Tank: 5L
Hydraulic Oil Tank: 14L
Transport Dimensions:
Overall Length × Overall Width × Overall Height: 2890*930*2190 mm

Note:
1. Technical specifications are for standard model (without cabin) only.
2. Other optional parts & accessories and colors are available upon request.
3. All specifications and design characteristics are subject to change without
prior notice.
