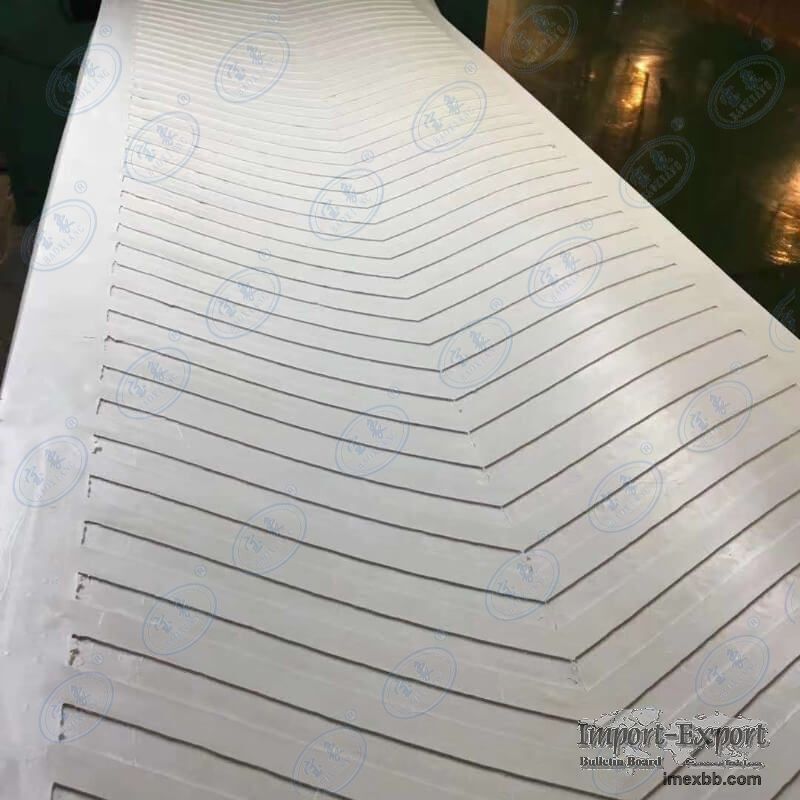

Corrugated Sidewall Conveyor Belt

Corrugated Sidewall Conveyor Belt Large inclination Angle side guard conveyor
belt construction conveyor belt

Baoxiang corrugated conveyor belt DESCRIPTION
Base band: the skeleton material adopts polyester-cotton impregnated canvas
(EP canvas, steel rope core) and transverse rigid reinforcing layer; adding
lateral rigid reinforcement layer into the belt body solves the problem of belt
collapse of large size blocking conveyor belt.
Side guard: according to the function of the side guard and the operation
characteristic of the whole belt, measures such as increasing the glue content
of the side guard and adding nylon cloth as the skeleton layer are
adopted.Enhanced the bending resistance and tear resistance of the retaining
edge, and increased the service life of the side guard.
Clapboard: adopt the mixing process of rubber material and fiber composite
material to make the clapboard has great rigidity, high hardness, enhanced
impact resistance, and avoid deformation due to the large force.
Adhesion of base band, side guard and baffle: adopt the advanced technology of
secondary synchronous low-temperature continuous vulcanization, improve the
bonding strength, and avoid aging base band due to multiple high temperature
vulcanization.
Large inclination Angle side guard conveyor belt
Features: Suitable for conveying bulk materials with an inclination of 0° ~
90°; With a wide range of use, small floor space, no transfer point, reduce
civil investment, low maintenance costs, large throughput, etc. Solved the
common belt and the pattern belt can not reach the transmission Angle; Also
according to the use of the environment, the design of a complete, independent
transport system, to avoid intermittent transport and complex transport lifting
system.
The specifications and dimensions of the standard models of the side guard belt
and side guard diaphragm are shown in the chart below

WK60 WK80 WK120 WK160 S160 S200 S240 S300
Sidewall highly 60 80 120 160 160 200 240 300
Sidewall bottom width 50 65 82 85 75 75 90
90
Sidewall amplitude 36 46 52 62 65 65 84
84
Sidewall pitch of waves 50 60 70 70 65 65 70
70
Sidewall weight 1 1.38 3.04 4.4 4.65 6.20 8.30
10.85
Fold flat in meters 0.67 0.92 2.03 3.2 2.7 3.6 4.8
6.3
Roller diameter 400 500 600 800 800 900 1000 1200
Sidewall pressing wheel diameter 280 340 360 480 480
600 420 600
Partition Height 55 75 110 145 145 180 220
280
Partition bottom width 6580 7570 120 TC145 TC145 TC200 TC200
TC200
Partition fold flat in meters 0.60.67 1.021.0 1.7131.83 2.37 2.30
3.39 5.0 6.6
Partition form applies to angles T-45 TC-60 CTC-90 TC TCS-90 TCS
Empty edge size 60-300

Baoxiang is a multifunctional conveyor belt manufacturers that integrates
production line development, manufacturing, debugging and technical
transformation. Its products include conveyor belting, nylon conveyor belt,
etc.
