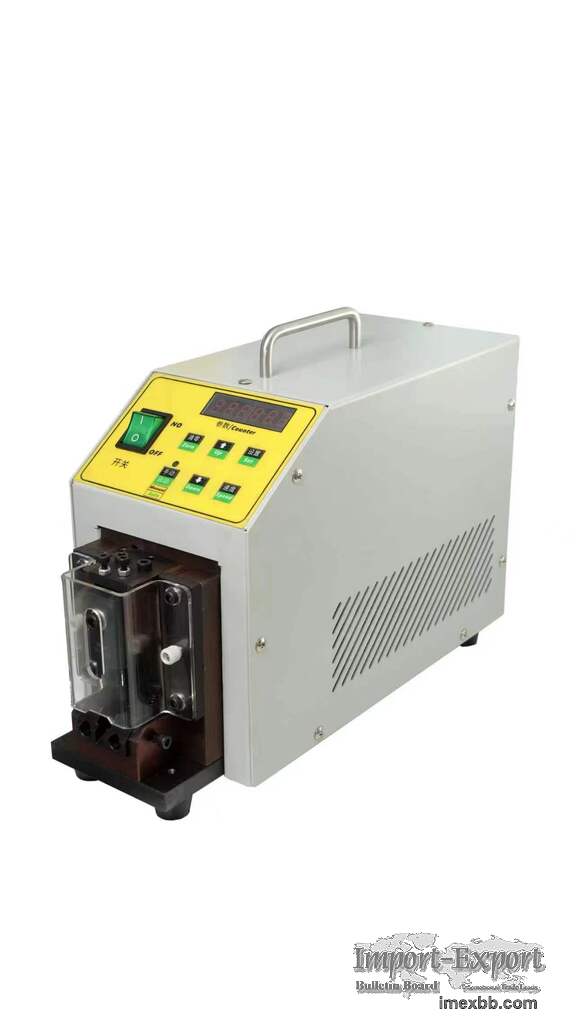

Crystal head crimping machine

Basic parameters
Processing range: 2-10P crystal head (tail clip can be customized)
Crimping speed: 3 times/second
Compression stroke: 26mm
Size (length * width * height): 359x143 x262 mm
Weight: approximately 10KG
Voltage and power: AC220V/60Hz/140W Operation mode: touch start
Crimping accuracy: ± 0.10

characteristic
Adopting variable frequency start stop technology, without brake device,
precise positioning parking, high-speed operation without fear of brake wear.
2. The needle pressing knife and adhesive pressing knife can be adjusted
independently, and changing the model can adjust the pressure quickly and
conveniently.
The trigger start switch adopts a low-voltage signal to start, with no risk of
leakage or contact burning, safe and efficient.
Adjustable motor controller that can adjust the running speed of A according to
usage requirements.
The digital crimping counting device can clearly record 5 times of crimping
production
advantage
Variable frequency start stop technology with no brake design. High speed
crimping without brake wear completely solves the equipment connection failure
caused by brake wear.
