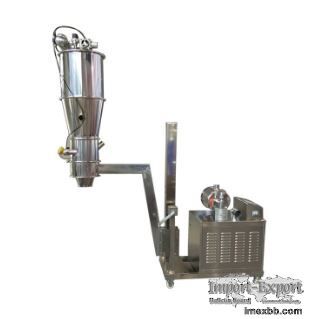

Dense Phase Pneumatic Conveying System Inflammable Material SS304

Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional
supplier for providing solid bulk material handling solutions, integrated with
designing , manufacturing sales and EPC service . Our mission is dedicated to
provide excellent solutions and services of handling solid bulk material in
order to consistently create maximum value for customers.

Pneumatic conveying system is widely used in chemical, fiber, food etc area,
especially for some food and medicine industry, closed pipeline can meet
hygeiene requirement. The features of this sytem is as follows:

Dense phase pressure conveying generally uses compressed air at above 0.1Mpa to
push materials from a hopper and high pressure rotary valve or pressure vessel
through a pipeline to the destination where the air and product are sparated by
a filter or other systems. The product extrudes through the pipeline at low
velocity , towards the destination.
Components and principle:

1. The system is combined with feed hopper, rotary valve or venturi devices,
pipelines and receiving hopper and filter, the air supply is roots blower or
centrifugal fan.

2. Material is poured into the feed hopper , then discharged to pipe through
the rotary valve or venturi, the mixture of air and material moves from the
pipe to receiving hopper resorting compressed air, the air is separated from
the mixture on the top of receiving hopper and released.

3. The material in the pipelines moves at a suspended state.



specifications conveying speed conveying distance operation pressure
SLR Pipe material
description 15-30M/S Max:800m Max:0.1MPa 3-15KG/KG
SS304, Q235 etc.
