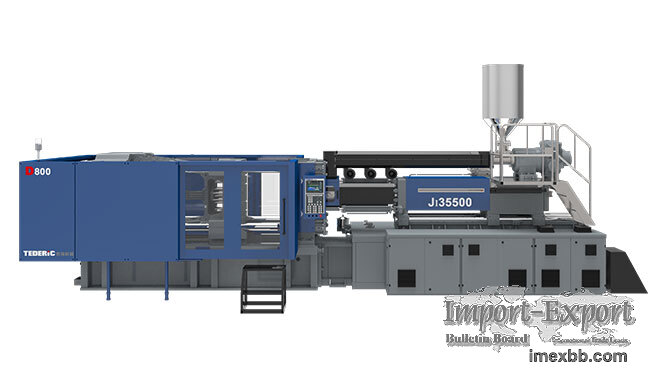

DT-JI Lower Pressure Special Injection Molding Machine

Introduction
TEDERIC D-JI low pressure injection molding machine developed by Tederic
Company combines extrusion and injection technology to form a dual-stage
injection structure(named J type) for pipe fitting. The plasticizing part
adopts the extrusion technology, which has the advantages of balanced
plasticizing and high efficiency; while the injection unit adopts the
reciprocating plunger structure, to the advantages of precision, large
injection volume, high efficiency and energy-saving. They are mainly used in
the production of large thick-walled pipe fittings. The clamping force can be
from 4000KN to 40000KN, and injection size from 9000cm³ to 750000cm³. It is a
recommended machine for producing thick wall pipe fittings (water and gas
supplying) and filter press plate.



Big PE pipe fitting is widely used in natural gas, water and waste water net,
electric and telecommunication construction. From the beginning of PE pipe
fitting applicate in those basic constructions, TEDERIC is focused on J type
machines R&D to meet and lead the technology. TEDERIC J type pipe fitting
moulding machines and its products are exported a lot to those countries with
the China government policy "one belt one road" supporting. TEDERIC is number
one and the best solution supplier. Customer high praise and a lot of great
case is the best evidence.

Design Highlights：
Color changing structure patent
Dual-stage Plasticizing Injection Structure
Leading Servo Power System
Precise and stable injection
Feature：
Extra large injection volume: Max injection volume to 750000 cm³, injection
pressure up to 80Mpa, having low pressure and thick wall injection molding at
the same time.

High-efficiency – extrusion screw applied in plasticizing: Plasticizing
efficiency is at least 30% higher than injection molding machines of the same
injection volume

Energy saving : large size combined with small clamping unit, reducing energy
consumption and costs

Tederic Machinery Co., LTD operates as an world-renowned plastic injection
molding machine manufacturer and solutions provider. We provide injection
moulding machine, plastic moulding machine, tederic injection molding machine
and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
