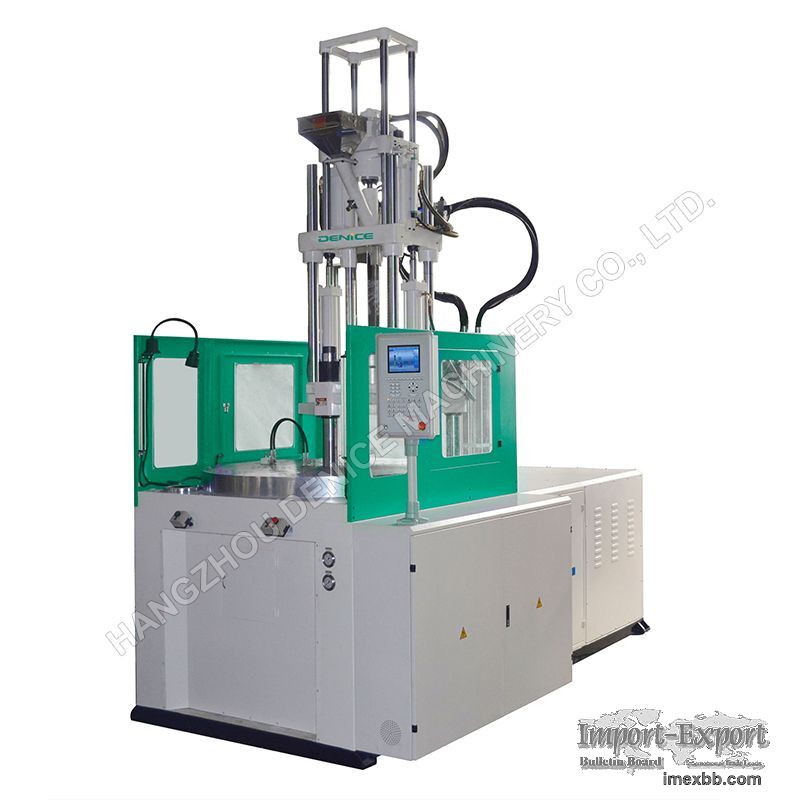

plastic handle rotary table injection molding machine DV-2500.2R

plastic handle rotary table injection molding machine DV-2500.2R
Plastic Zipper Making Machine, Fully Automatic Plastic Injection Moulding
Machines Hangzhou Denice Machinery We Provide Plastic Zipper Making Machine
And Fully Automatic Plastic Injection Moulding Machines, Our Company Has Been
Committed To Supply Personalized Product Solutions To Customers,pla Consult Us.

DV-2500.2R  vertical injection molding machine：
Vertical clamping, vertical injection, safe and prevent mould from weigh, it
fit for inserts plastic molding.

Multi station rotary table machine, （1 upper mold, 2 to 4 bottom mold）safe
and time saving, increase production efficiency up to 50% to 100%.
Specification
Model Unit DV-2500.2R
(  Injection    Unit  ) Screw diameter mm Ф60 Ф65
Maximum injection  pressure Kg/cm2 1588 1353
Theoretical shot volume cm3 706 829
Maximum shot weight（PS） g/Oz 630（22.2） 740（26）
Injection rate cm3/sec 189 221
(  Clamping      Unit  )  Clamping force ton 250
Rotary Table Diameter mm 1800
tie bar distance mm -
Minimum mold thickness mm 350/450（Can be customized according to
customer requirements）
Opening stroke mm 450
Open daylight mm 800/900（As required）
Ejector force T 7（Can be customized according to customer
requirements）
Ejector stroke mm 145
(  Others  ) Pump motor power Kw 22
Hydraulic system pressure Kg/cm2 140
Barrel heating power Kw 14.25
Total wattage Kw 36.25
Oil tank   capacity L 850
Machine weight  (approx.) T 12.7
Machine dimensions(approx.) m 3.9×2.3× 5.6
