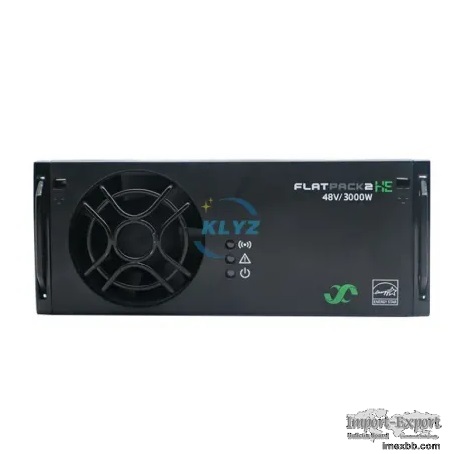

Eltek Flatpack2 48/3000 HE rectifier module 48V 3000W

Eltek Flatpack2 48/3000 HE rectifier module 48V 3000W
Product Description
Flatpack2 48V/3000W HE
The combination of innovative design, efficiency and reliability makes the
Flatpack2 HE stand out. Increasing network speed demands flexible and
expandable DC power solutions.
The Flatpack2 HE rectifiers are your key building blocks for future needs.
With an efficiency up to 96.5%, the losses have been reduced by 50% compared to
the current industry standard.In a global perspective, considering the high
energy consumption in the telecom industry.
This technology breakthrough is not only reducing operational cost for the
operators, but it can also have a significant environmental impact.
HE rectifier Key features
Power dense, up to 33 W/inch3
High efficiency
Proven reliability
Application flexibility 2kW-3MW
Global compliance
Patented HE technology
Model Flatpack2 48/3000 HE
Part number 241119.105
INPUT DATA
Voltage (nominal) 176 - 277 VAC
Voltage (range) 85 - 305 VAC
Frequency 45 - 66 Hz, 15-18.5 Hz1) / 0 Hz
Current (maximum) nominal input, full load 19.2 ARMS
Protection Fuse in both lines Varistor for transient protection Disconnect
above 305 VAC
