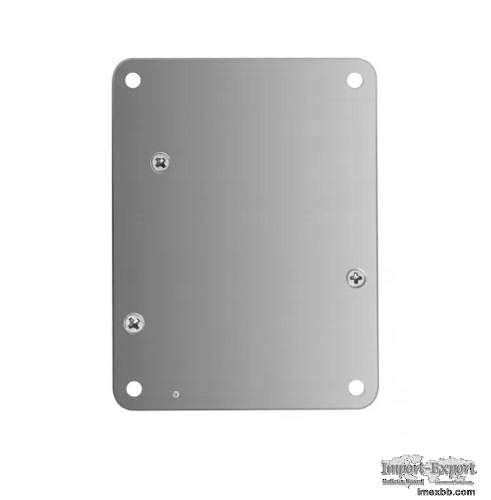

Ex10 UHF RFID Printer Module

The RRUx403OMP UHF RFID Printer Module, powered by the IMPINJ E series chip, is
specifically designed for RFID printers, supporting temperature sensor tags and
embedded applications. Based on the IMPINJ E710 chip design and Gen2 Extension
Ready, it features a proprietary orthogonal decomposition algorithm for precise
label positioning and calibration, enabling seamless operation in complex
printing environments with densely packed small labels. This Single Port Module
easily adapts to various RFID printer structures across multiple scenarios,
perfectly meeting comprehensive printing needs. Sub-versions based on the E510
and E310 chips are also available.
EATURES
Self-intellectual property;
Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2)
protocol tag, featuring excellent multi-tag anti-collision functionality;
865~868MHz/902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
IPEX socket for external antenna;
Effective distance up to 10m*(with external 8dbi antenna and tag E41);
Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510)
or 350 pcs/s (using E310);
Tag buffer size up to 1000PCS@96bits EPC;
Low power dissipation with single +3.6~5.5VDC power supply;
Support RSSI;
High stability with air cooling and no extra heat sinking;
Capable of continuous operation for 24 hours×365 days;
Support on-the-site firmware upgrading.
