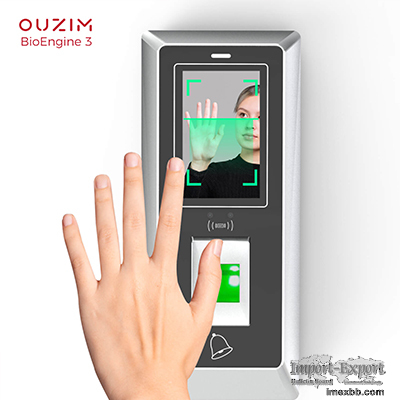

Face and Fingerprint Recognition Reader

Ouzim BioEngine3 Biometric Facial Fingerprint Access Control Terminal for
security entrance solution

Model: BioEngine3
Brand: Ouzim
Ouzim BioEngine 3 Biometric Facial Fingerprint Access Control Support a
Wide Range of Authentication Multifunction
BioEngine 3 offers a wide range of authentication multifunction: face,
fingerprint, palm vein, passcode and cards,
1. 1,000 face +10,000 fingerprints +1,000 palm vein +1,000 cards +1,
000 passcode + 200,000 records
2. Built-in card reading module, support card 13.56 MHz (Standard), ID
card 125KHZ (optional)
3. Statically face recognition, suitable for; banks, computer rooms,
prisons, telecommunications, factories and other places with high security
requirements.
4. Semiconductor fingerprint sensor, improve the performance of the
fingerprint identification.
5.
Ouzim BioEngine 3 Support High Performance Fingerprint Access Control
1. 2.8 inches capacitive touch screen, LINUX operation system, 1G CPU.
2. Support multiple recognitions: palm vein + face + fingerprint +
card + password.
3. Touch operation: touch screen operation, offline and independent
use, no computer;
4. Combination recognition: support multiple combination recognition;
5. High performance: fast registration, fast recognition less than 0.3
seconds;
6. Live detection: binocular live body Camera, prevent video and photo
fraud;
7. Powerful: with professional access control functions, support U
disk time and attendance card report output.

Ouzim BioEngine 3 Support Well-developed Attendance
Management System
1. With all access control professional functions, detailed excel
report can be directly exported through U disk.
2. Support touch-screen offline operation, PC-less, easy to use.
3. Support flexible interface: RS232/RS485/TCPIP/Wiegand in&out.
4. Support multiple communication modes: U disk, TCP/IP, WIFI
(optional).



Ouzim BioEngine 3 Biometric Facial Fingerprint Access Control
Specifications Sheet:
Identification mode Facial/ Fingerprint / Palm Vein/ Card / Password
Communication method USB2.0,TCP/IP
RFID technology 13.56 MHz card (Standard), 125KHz ID card (optional)
Key Touchscreen
Recognition speed < 0.3s
Max. Users Facial: 1,000; Fingerprint: 10,000; Cards: 1,000 Palm
Vein:1,000
Passcode capacity 1,000
User capacity 1,000
Recording capacity 200,000
Support Language English, and other languages can be selected
Operation System LINUX
CPU 1GHz
Storage Capacity 8G
Comparison method 1:1 or 1: N
Camera Infrared + color dual high-definition camera-300,000 pixels
Display 2.8 inches capacitive touch screen
Dimensions (W x H x D) 192mm x 82mm x 30mm
Gross Weight 500g
Appearance Slim and Elegant Design
Performance 360-degree rotation identification
Functions LCD display/Speaker Voice/Beep sound
Working Temperature -10°C~45°C (37.5°F~113°F)
Humidity 20% to 80%
Power Input DC12V/2A (DC9V-14V)
TCP/IP Support
Wifi Optional
Attendance management USB disk output
Access authority 255 Time periods, Anti-passback
Alarm Tamper alarm, Illegal intrusion alarm, Door-unclosed warning
Relay 2 Relay Out
Wiegand One Group of Wiegand Input / Wiegand Output (26/34)

Minimum Order: 1 sets
