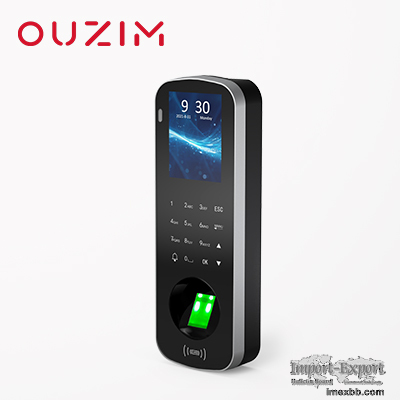

Fingerprint Recognition Reader

Ouzim BioEngine2 Biometric Fingerprint Access Control for security entrance
solution

*Model: BioEngine2
*Brand: Ouzim
*Supports multiple authentication multifunction: fingerprint, passcode and
cards.
1. 3,000 fingerprints +3,000 cards +3,000 passcode + 200,000 records
2. Support Mifare card 13.56 MHz +ID card 125KHZ
3. 360-degree rotation identification, high sensitive to identify. No
need film cover on the sensor
4. <0.1s fast commercial-based fingerprint matching algorithm and
high-performance and
5. High-image quality infrared detection fingerprint sensor.

Ouzim BioEngine2 Support High-Performance Fingerprint Access Control
1. 2.4-inch TFT color LCD, 400MHZ CPU, with leading identification
speed <0.1s identification (Full of 3000 Fingerprint)
2. All the operations can be done on the 2.4-inch TFT color LCD
screen. The fingerprint image will be displayed on it
3. Configured with full reflection optical fingerprint module,
coordinating with self-update
4. English or other language LCD display/Speaker Voice/beep sound
5. Hard surface optical sensor, Uncoated glass window, scratch and
impact resistance
6. The device offers flexibility to be installed standalone or with
any third-party access control device


Ouzim BioEngine2 Support Well-developed Attendance
Management System
1. With all access control professional functions, detailed excel
report can be directly exported through U disk.
2. Support touch-screen offline operation, PC-less, easy to use.
3. Support flexible interface: RS232/RS485/TCPIP/Wiegand in&out.
4. Support multiple communication modes: U disk, TCP/IP, WIFI
(optional).





Ouzim BioEngine2 Security Biometric Fingerprint Access Control
Specifications Sheet:
Identification mode Fingerprint/Card/Passcode
Communication method USB2.0,TCP/IP
RFID technology 13.56 MHz Mifare card +125KHz ID card
Key Touchscreen
Recognition speed < 0.1s
Fingerprint capacity 3,000(standard), 30,000(optional)
Card capacity 3,000
Password capacity 3,000
User capacity 3,000(standard), 10,000(optional)
Recording capacity 200,000
Support language English, other languages can be selected
Operation system LINUX
CPU 400MHZ
Storage capacity 8G
Comparison method 1:1 or 1: N
Display 2.4-inch TFT color LCD, resolution 240*320
Dimensions (W x H x D) 203mm x 72mm x 31mm
Gross weight 500g
Working temperature 0°C~45°C (32°F~113°F)
Appearance Slim and Elegant Design
Functions LCD display/Speaker Voice/Beep sound
Humidity 0% to 80%
Power Input DC12V/2A (DC9V-14V)
TCP/IP Support
Wi-Fi Optional
Attendance management USB disk output
Access authority 255 Time periods, Anti-passback
Alarm Tamper alarm, Illegal intrusion alarm, Door-unclosed warning
Relay 2 Relay Out
Wiegand One Group of Wiegand Input / Wiegand Output (26/34)

Minimum Order: 1 sets
