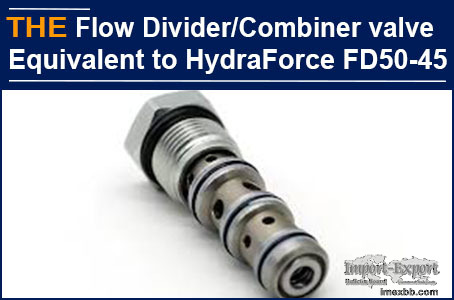

For Hydraulic Flow divider/combiner valve equivalent to HydraForce FD50-45,

This week, we’d like to introduce a hydraulic flow divider/combiner valve
equivalent to HydraForce FD50-45. This valve is a screw-in cartridge, spool
type flow divider/combiner valve. It provides pressure compensated proportional
division of inlet flow or combining of two return flows regardless of system
operating pressure conditions. The valve provides synchronizing flow in
dividing and combining modes. The valve is intended for use in mineral based or
synthetic hydraulic fluids with lubricating properties.

Last December, we received an inquiry from a new customer in the United States
for HydraForce FD50-45 Hydraulic Divider/Combiner valve. This cartridge valve
is not very commonly used, and there are only a few hydraulic cartridge valve
manufacturers in Ningbo China that have this model in stock. Per customer, they
have followed up hydraulic cartridge valve manufacturer AAK for a long time,
and would like to place a trial order for 10 pcs for HydraForce FD50-45 first.
If the valves passed testing, they will place the annual order for 1,000 pcs.

We are confident to become the preferred hydraulic cartridge valve supplier for
this customer in the United States, because AAK quality has been approved for
many American customers.

AAK hydraulic Flow divider/combiner valve:
1. The function and performance is equivalent to that of HydraForce FD50-45
2. Its service life is longer than of its domestic peers

Technical parameters of AAK E-FD50-45 hydraulic Flow divider/combiner valve:
Max. Operating Pressure: 345 bar (5000 psi)
Flow: 4 - 12 gpm (15.1 - 45.4 lpm)
Flow Accuracy: 10% (25 ~ 100% of Max.inlet flow)
Cavity: 10-4
Filtration: 25μm or better
Temperature Range: -40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)

AAK E-FD50-45 hydraulic Flow divider/combiner valve, benchmarking HydraForce
FD50-45, its service life is 2 times that of its domestic peers. You are
welcome to give it a try.

AAK HYDRAULIC CARTRIDGE VALVES (790) 2024-04-01

Minimum Order: 5 sets
