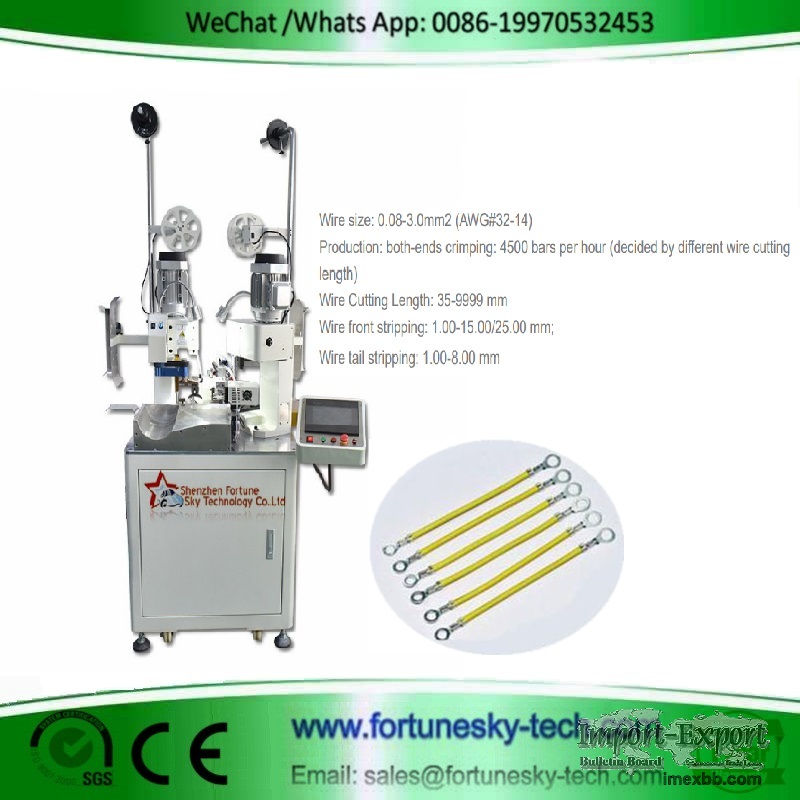

Fully automatic double-ends single wire terminal crimping machine

1. This fully automatic AWG32-14 wire stripper terminator use true
color touch screen,easy to operate,precise stepping motor and its
driver,accurate and stable.
2. The parameters can be adjusted by setting the touch screen: whether the
wire both ends are fully stripped or not, whether the wire both ends are
partially stripped or not, whether the wire both ends are crimped or not.
3. Wire cutting length,wire stripping length and incision depth can be
adjusted by touch screen.
4. The crimping device adopts universal mute terminal crimping machine with
low noise and stable performance, it can carry transverse/direct applicator.
Product name: Fully automatic double-ends single wire terminal crimping
machine
Wire size: 0.08-3.0mm2 (AWG#32-14)
Production: both-ends crimping: 4500 bars per hour (decided by different
wire cutting length)
Function: both-ends full stripping, both-ends partial stripping, both-
ends terminal crimping
Wire Cutting Length: 35-9999 mm
Cutting Accuracy: 0.2 + (set cut-off length * 0.002)
Wire Stripping Length: Wire front stripping: 1.00-15.00/25.00 mm;
Wire tail stripping: 1.00-8.00 mm
Detection device: Wire detection, wire knotting detection, improper
crimping detection, etc.
Power Source: Single phase: AC220V 20A

Minimum Order: 1 pieces
