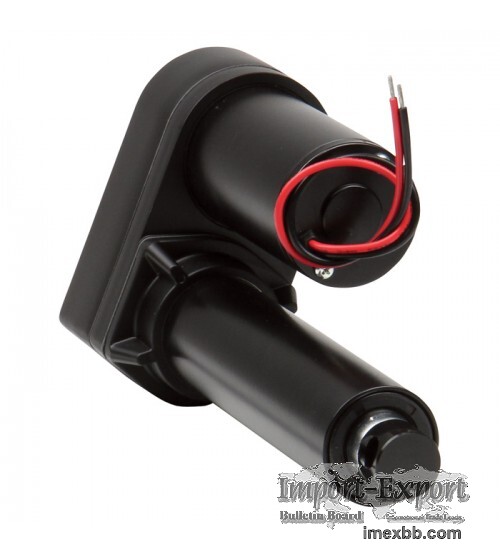

Glideforce 500-Lb. Capacity ID-ACME Linear Actuator - 12in. Stroke

Rugged Glideforce ID-ACME linear actuator can be used in a variety of outdoor and indoor applications. The 12V motor has a 20:1 reduction gearbox that gives ACME actuator a dynamic load rating of 500 lbs. and is rated to hold up to 1,000 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm.
What's Included

(1) Linear actuator



Features + Benefits

12in. nominal/12.05in. actual stroke
12V motor
20:1 reduction gearbox
500-lb. dynamic load rating
1,000-lb. static load rating
Extension speed is 0.56in./sec. at max. load
Extension speed is 0.71in./sec at no load
25% duty cycle
15 Amps at full load
4 Amps at no load
IP65 enclosure
ACME drive assures smooth and quiet operation
Built-in torque limiter prevents overdriving
All metal powder-coated housing is water-resistant and sealed against dust
1/2in. mounting pin holes
18.27in. retracted length
0.787in. shaft diameter

Key Specs
Item# 27318
Brand Concentric
Manufacturer's Warranty 1 year Limited Warranty
Ship Weight 12.4 lbs
Product Type Actuator
Stroke Length (in.) 12
Dynamic Load Capacity (lbs.) 500
Static Load Capacity (lbs.) 1,000
Gear Ratio 20:1
Length Retracted (in.) 18 1/4
Power (Volts) 12
Frame Material Aluminum, stainless steel
Overall Dimensions L x W x H (in.) 19.24 x 3.04 x 5.97
