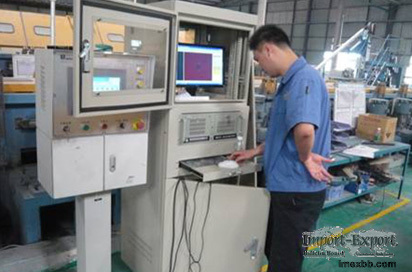

GSET-551 Steel Wire Eddy Current Flaw Detector

GSET-551 Steel Wire Eddy Current Flaw Detector Brief Introduction

Using the eddy current signal processing method and high-performance DSP
algorithm, the wire rope NDT tester detection ability of micro-crack is as high
as 0.05mm deep crack.

Using computer digital technology and "digital eddy current detection
technology" to achieve high-speed data processing capabilities, detection speed
can be reached to 1~500m/min. Technology can effectively suppress all kinds of
interference signals. It has waveform, amplitude, phase, X-axis and Y-axis
signals.

The professional "digital filtering" is adopted to effectively suppress the
interference signal in the field and ensure the accuracy and stability of the
detection.


Features of GSET-551 Steel Wire Eddy Current Flaw Detector

1. LF testing sensitivity

The detector detects the minimum metal cross-sectional area change and the
minimum length of the damage length corresponding to the local damage.



2. LMA testing sensitivity

The detector detects the minimum metal cross-sectional area change and the
damage length minimum size corresponding to the metal cross-sectional area
loss.



3. LMA repeatability error

The maximum value of the random error obtained by performing multiple
consecutive measurements of the same metal cross-sectional area change in the
same test sample under the same test environment and conditions within the
instrument range.



4. LMA linearity error

Within the range of the instrument, the metal cross-sectional area of the test
sample is linearly proportional to the absolute value of the maximum deviation
between the measured curve of the instrument and the calibration curve fitted
by the measured value of the cross-sectional area of the metal.



5. LMA error of indication

The value of the metal cross-sectional area loss measured by the instrument
minus the actual value of the metal cross-sectional area loss within the
instrument's range.



6. LMA linearity error

In the range of the instrument range, under the condition of the length loss of
the cross-sectional area of the metal, the cross-sectional area loss of the
metal on the wire rope measured by the detector is matched with the value of
the loss of the cross-sectional area of a group of wire ropes measured by the
instrument. The absolute value of the maximum deviation between the calibration
curves.



7. Testing distance resolution

The detector is capable of detecting the resolved minimum distance.



8. Dual function instrument

The detector can detect and display changes in metal cross-sectional area loss
(LMA) on one channel, and detect and display local damage (LF) on the other
channel. The detector recording device can be a computer, graphic recorder or
other matches. device.



9. Single-function instrument

The detector cannot simultaneously detect and display metal cross-sectional
area loss changes and local damage, and can only detect and display one of
them. The detector recording signal device can be a computer, a graphic
recorder or other matching devices.



10. Wire rope electromagnetic tester

The detector principle and composition meet the requirements of the GB/T 21837-
2008 standard, and it has a detector for detecting distance display, data
storage or recording function.
GSET-551 Steel Wire Eddy Current Flaw Detector performance

Detection channel Single-channel
Detection speed 1～500m/min(on-line)
Frequency range 100Hz-10MHz
gain 0～99dB，step size 0.1dB
Advanced filtering have
High pass 0.1Hz～650Hz
Low pass 1Hz～10000Hz
Phase rotation 0-360 ° step 1 °

Synchronized alarm output controlled by an internal and external clock
High precision end and end-to-tail signal removal
High precision real-time, delayed alarm output
Fast digital／analog electronic balance
Memory track delay blanking function
Real-time impedance plane display
The instrument a match any probe
Remote automatic help system
Computer full digital parameter adjustment
Non-equal amplitude phase／amplitude alarm domain
Eddy Current Testing Equipment
ECT Eddy current testing is a non-contact testing method, which mainly uses the
electromagnetic field and electromagnetic induction between metals to detect.
It is one of the NDT non-destructive testing methods in the industry.

Why BKN NDT Testing Equipment

The technology of BKN originated from eddy current Laboratory of Institute of
Materials, Nanjing University of Technology. At present, it is a leading high-
tech ultrasonic testing equipment manufacturers in China. The company is
committed to the development of eddy current, ultrasonic, magnetic flux leakage
and various non-standard equipment, holding independent research and
development of a number of national patents.
