Handheld Thermocouple Calibrator

Handheld Thermocouple Calibrator


Model: LGK-JS02-064
Overview

LGK-JS02-064 handheld thermocouple calibrator is a product independently
developed and designed by Wuhan CenterRise M&C Engineering Co., Ltd. The
calibrator can measure the temperature detected by two thermocouples.

We fully consider the customer's needs. In order to be used conveniently,
our calibrator pursues accuracy, stability, durability and beauty in
research and development and design. At the same time, it is also committed
to the characteristics of small size, flexibility, simple operation, and
long standby time.



Working principle

The LGK-JS02-064 handheld thermocouple calibrator reads the temperature data
of the thermocouple sensor at a single point through a special chip, and
then displays it on the screen through a nixie light.

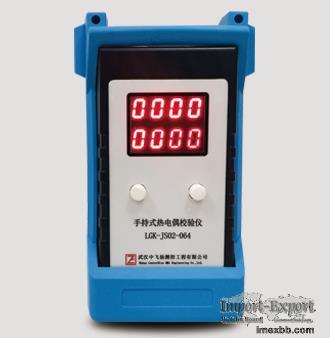

Front view of LGK-JS02-064 handheld thermocouple calibrator














Figure 4.1.1 Front view of thermocouple calibrator







The above picture shows the front view of the LGK-JS02-064 handheld
thermocouple calibrator. As can be seen from the above figure, the
instrument has one switch button, two operation buttons, one interface to be
calibrated and LCD display.



Technical parameters

Test temperature range: 0-1000℃

Operating temperature: 0°C-50°C

Common working section 25°C-800°C

Power supply: 2 AA dry batteries

Minimum Order: 1 pieces
