High Resolution Automated Fundus Camera Red Free 50 Degrees

High-resolution image - camera pixel range from 18mega to 24 mega Automated
Fundus Camera

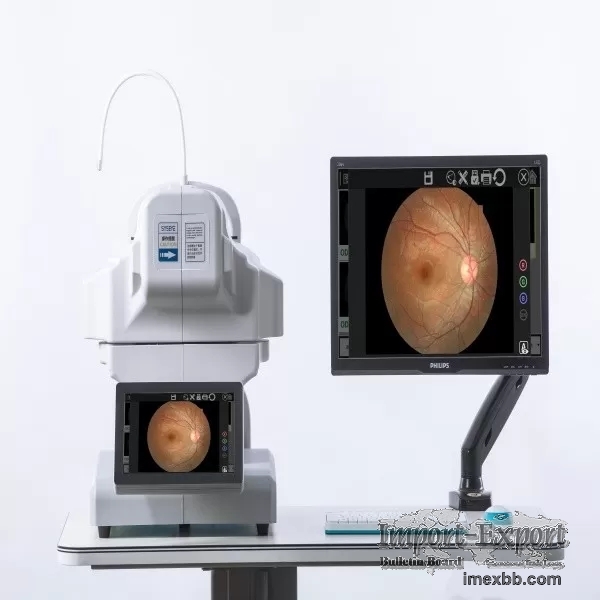

Automated Fundus Camera RetiCam 3100 is a world-class automatic fundus imaging
system. Through dual camera imaging, image control and feature recognition, XYZ
3D automatic location is realized. Through CCD imaging feedback, the exposure
light is measured and the exposure intensity is determined automatically and
correctly. Focusing step is controlled according to the image resolution, and
image definition is adjusted to obtain clear and accurate fundus
image.Automated Fundus Camera RetiCam 3100 has excellent optical imaging
capability, easy to operate, less dependence on the operator, easier to obtain
images.



Acquisition Modes Automated Fundus Camera/mydriatic Anterior photography
/Red-free(optional)(FFA)/(FAF)
Field View 50°
Working Distance 35mm
Minimum Pupil ≥3.3mm
Focus Modes Manual/Auto
Alignment Modes Double dots auxiliary
Exposure Manual /Auto
Photography SLR Camera
Image definition 24 Megapixel
Compensation ±25D
Fixation External /Internal (any position available)
DICOM 3.0 Support




Automated Fundus Camera in the
world
Brand TOPCON(NW-400) DRS NEWVISON(RETICAM3100)
operation automatic(one key taking picutre)/manual automatic(one
key taking picutre)/manual automatic(one key taking picutre)/manual
Acquisition modes fundus/anterior/? fundus/anterior/red-free filter
fundus/anterior/red-free filter/FFA(optional)/FAF(optional)
Filed of view 45 degree 40-45degree 45-50degee
Mosic degee 80 degree 135degree
Minimum pipil size 3.3mm 3.5mm 3.3mm
Resolution above 18megapiexl sensor size:5 megapixel sensor
resoultion: 48 pixel/degree above18 megapixel (24 megapixel optional )
Fixation 9 internal + 1 outside fixaiton 7 internal fixation
countless fixaiton, any position is available during range + 1 outside fixation
Technology of focus Dual camrea technology
exposure ligh standard standard new technology, more soft, one
patient same eye can take picuture consecutive with almost same performace
