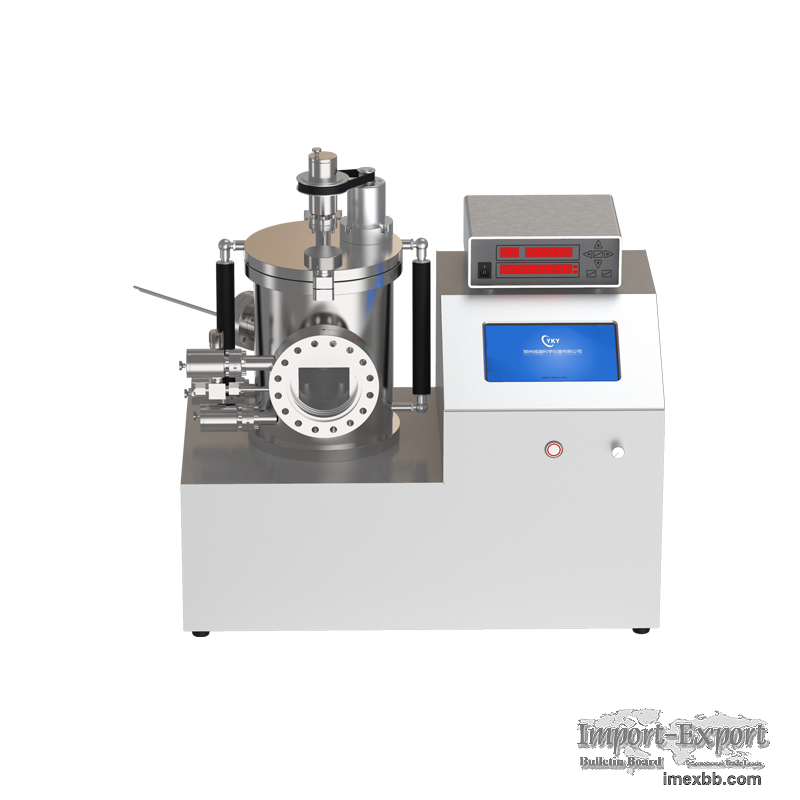

high vacuum evaporation coater with two sources

Introduction
CY-EVP180S-2S-HV is a high-vacuum evaporation coater with two sources, tungsten
filament basket (or tungsten boat) is used as the evaporation source, and distance
between sample table and evaporation source is adjustable. The instrument can
stably evaporate metals and some organics. High-vacuum stainless steel chamber is
adopted, which has good sealing performance and excellent vacuum performance. The
chamber is equipped with an observation window, so the coating process is visible.
Ultimate vacuum 10E-5Pa with molecular pump system, effectively improve the coating
quality, and can meet the vacuum environment required for most evaporation coating
experiments.

Technical parameters
1. Input power AC 220V, single phase, 50Hz
2. Evaporation current 100A
3. Electrode voltage 10V
4. Evaporation source Quantity: 2
Tungsten filament basket ×2 pcs, tungsten boat ×2 pcs
Evaporator baffle Yes
5. Sample holder Top setting
Diameter: φ65 mm
Rotating speed: 0-20 rpm
The distance between sample holder and evaporation source is adjustable
6. Vacuum chamber Inner wall processing: electrolytic polishing
Chamber dimension: ~φ180mm×H210mm
Chamber material: 304 stainless steel
Opening mode: top open
7. Temperature measurement B type thermocouple
8. Display screen 7-inch touch screen
9. Current regulation Touch screen setting, range 0~100A
10. Vacuum required
Rotary vane pump or molecular pump group can be selected as required. (additional
charge)
Extraction interface KF25
11. Inlet interface Diameter 6mm round hole fine tuning valve
12. Thin film thickness gauge
Accuracy: 0.1Ã
Measurement speed: 100mS-1S adjustable
Measurement range: 500 000Ã (Aluminum)
Standard sensor crystal: 6MHz

Minimum Order: 1 sets
