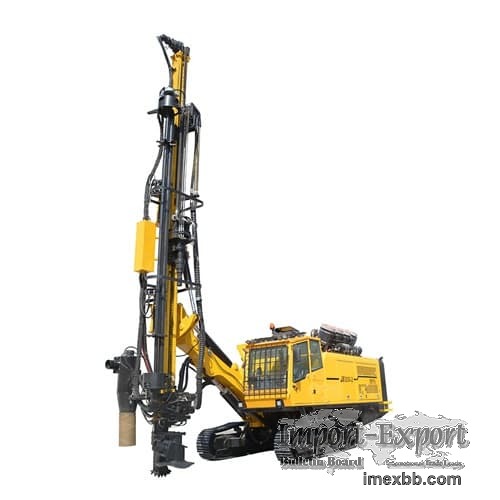

JK830 Integrated DTH Automatic Drilling Rig

The JK830 Automatic Drilling Rig enables complete control and orientation of
drilling rig functions through a single control source. Designed to help enable
safer, more efficient, and lower cost operations while reducing downtime, the
system can be configured as any number of HMIs.
The JK830 interfaces with key rig components using remote I/O mounted on the
drawworks, top drive, mud pump and drill floor. All controls are accessible
from the driller's room through a combination of touchscreen, discrete operator
and simple joystick controls.
Additional features for stick/slip mitigation
Used to reduce stick/slip vibration during rotary drilling. The plug-in offers
a number of advantages that allow customers to drill more aggressively for
longer periods of time.
JK works with you to tailor products for your DTH Drilling Rig. This close
cooperation optimizes performance, efficiency and safety while maximizing
equipment life. Experienced technical and service team members are available
24/7 to ensure drilling operations are carried out as efficiently and safely as
possible.
Specification
Items Specs Unit Value
Body Weight kg 25000
Length mm 12300
Width mm 3200
Height mm 3500
Undercarriage Track length mm 3646
Ground contact length mm 2912
Track center distance mm 2349(whole width 2749)
Track width mm 400
Ground clearance mm ≥400
Track oscillation ° ±10°
Walking motor Eaton
Walking speed Km/h 1.6(low), 3(high)
Max. tractive force KN 170
Grade ability ° 20°
