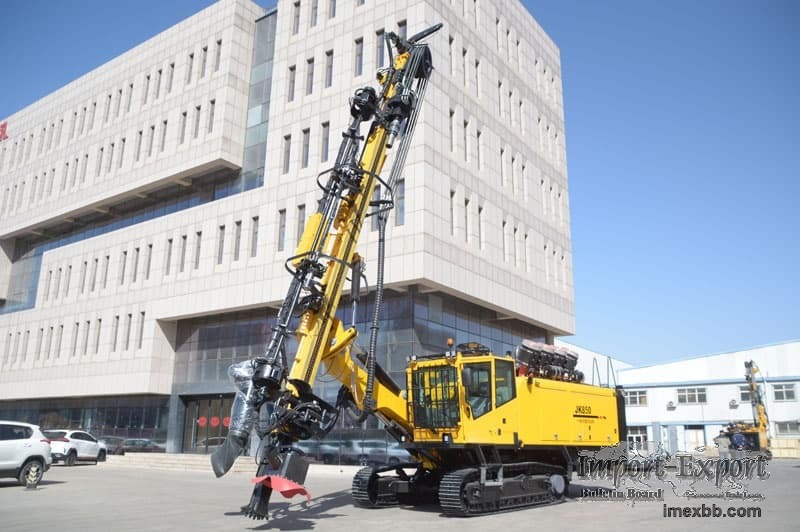

JK850 Integrated DTH Drilling Rig

JK850 is an integrated hydraulic DTH drilling rig, which brings you more
automation, higher working efficiency, better reliability and simpler
operation. The FOPS-approved cabin and automatic pipe handling system come
standard.
Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability
and improved safety. The hydraulic dust collecting system meets the latest
environmental protection regulations and it's a reliable solution to realize
the modern green mining
Technical parameters
General
Weight kg 25000
Length mm 12300
Width mm 3200
Height mm 4200
Undercarriage
Track length mm 3646
Ground contact length mm 2912
Track cenler distance mm 2349(total width 2749)
Track width mm 400
Ground clearance mm ≥400
Track oscillation ° ±10
Walking speed km/h 1.6(slow speed)3(fast speed)
Max. tractive force KN 170
Grade ability ° 20
