Keysight N2891A – Available at Matson Calibration

Keysight N2891A: High-Voltage Differential Probe for Precision Measurements
– Available at Matson Calibration.

Product Overview

The Keysight N2891A High-Voltage Differential Probe is a high-performance
probe designed for measuring high-voltage signals in power electronics,
automotive, and industrial applications. With a wide bandwidth of 70 MHz
and a high voltage rating of 7 kV, the N2891A provides accurate and
reliable measurements in demanding environments.

Features and Specifications

High voltage rating: 7 kV
Wide bandwidth: 70 MHz
High input impedance: 10 MΩ
Low input capacitance: 1.5 pF
Selectable attenuation: 100:1 and 1000:1
Auto-ranging: Automatically adjusts attenuation based on input signal
Overvoltage protection: Protects the probe from damage due to overvoltage
Compact and lightweight: Easy to handle and use in tight spaces

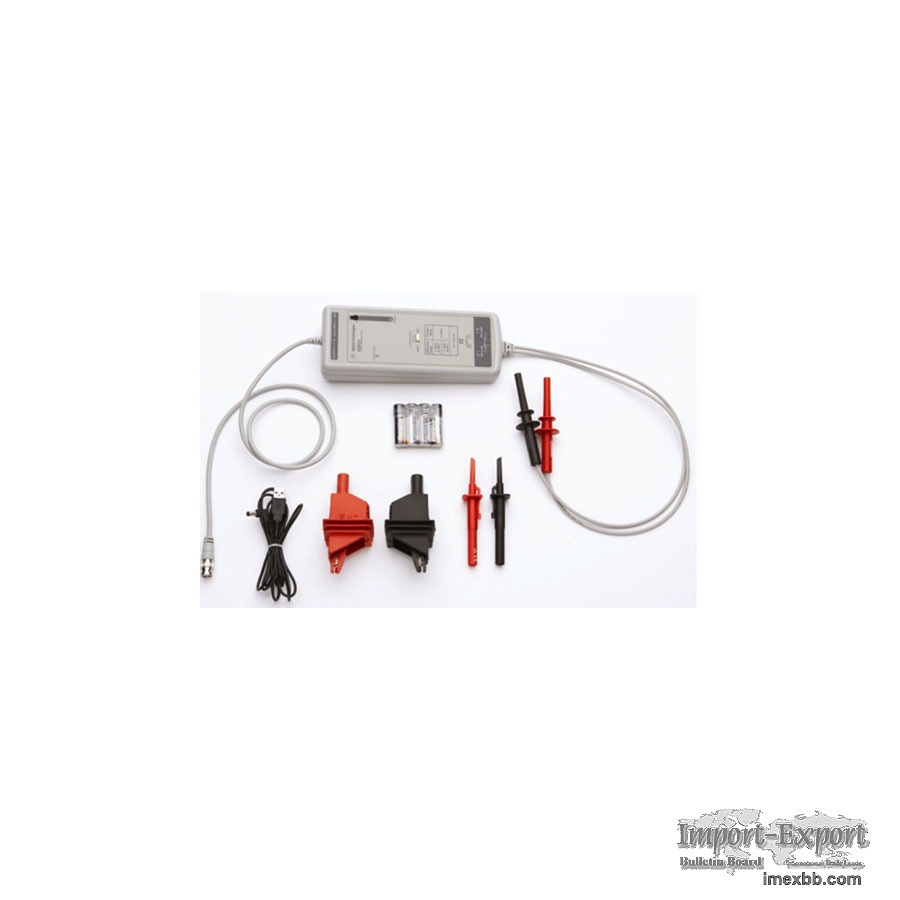

What’s in the Box

N2891A High-Voltage Differential Probe
Ground lead
Probe tip
User manual

Benefits

Accurate and reliable measurements: High voltage rating and wide bandwidth
ensure accurate measurements in demanding environments.
Versatile: Selectable attenuation and auto-ranging provide flexibility for
a wide range of applications.
Safe and easy to use: Overvoltage protection and compact design ensure
safety and ease of use.
Time-saving: Auto-ranging eliminates the need for manual adjustments,
saving time and effort.

Value to the Customer

The Keysight N2891A High-Voltage Differential Probe is an essential tool
for engineers and technicians working with high-voltage systems. Its high
performance, versatility, and safety features make it an ideal choice for a
wide range of applications, including:

Power electronics testing
Automotive diagnostics
Industrial equipment troubleshooting
High-voltage research and development

Minimum Order: 1 pieces
