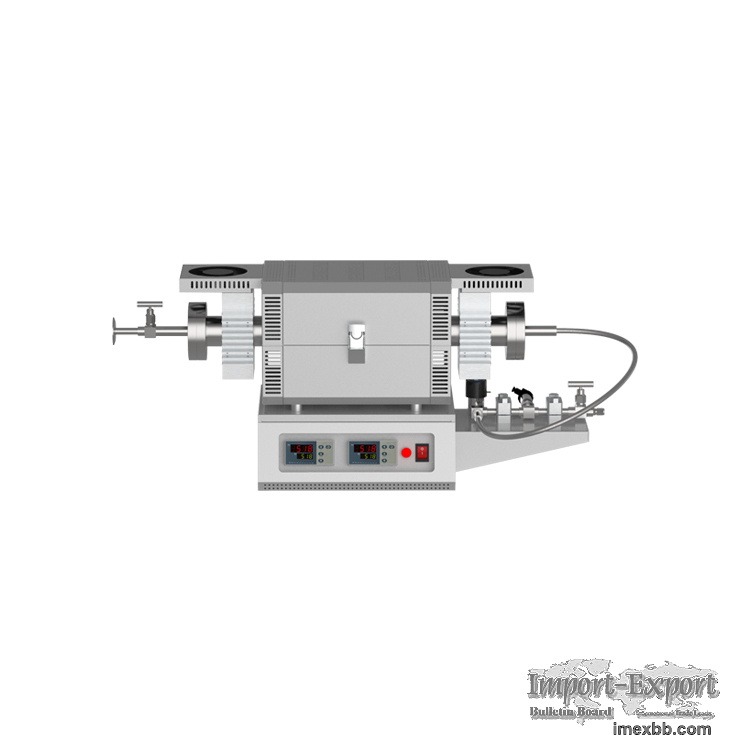

lab mini high temperature high pressure tube furnace

Mini high pressure tube furnace

CY-H1200-1L high pressure tube furnace is mainly composed of three parts: heating
system, high temperature and high pressure furnace tube and pressure measurement
and control system. It can realize the three functions of automatic stamping,
overpressure release and automatic temperature control. It is also equipped with
process software, which can realize the whole collection of data during the
sintering process, and provide the most true and reliable basis for the analysis
and research of experimental data. The equipment can be widely used for high
temperature and high pressure processing of nano materials, high temperature and
high pressure sintering of special functional ceramics, and this high temperature
and high pressure modulation method is used to change the thermal properties and
electrical conductivity of the materials.

Technical parameters:
Supply voltage: AC220V/110V, 50Hz/60Hz
Total power: 2KW
Operating temperature: ≤1100℃
Heating rate: Suggest 10℃/min
Thermocouple type: K-type thermocouple
Furnace tube size: O.D.φ60mm I.D φ25 xφ L. 600mm
Furnace tube material: Super high temperature alloy
Sealing flange: Pressure flange
Pressure measurement: Semiconductor pressure gauge
Overvoltage protection: Safety vent valve
Heating zone: Single heating zone 200mm
Temperature control
1) PID automatic control of heating rate, cooling rate and holding time
2) PID control over temperature protection and thermocouple failure protection
3) It has over-temperature protection alarm function, so the equipment can run
unattended
4) The temperature accuracy is ±1℃ (the difference between the displayed
temperature and the actual temperature)
5) AI-PID 30-segment process curve, can store multiple
6) Temperature control accuracy ±1℃
Work pressure
≤4Mpa @800℃
≤2.5Mpa @900℃
≤1.2Mpa @1000℃
≤0.8Mpa @1100℃
Working gas: Non-corrosive gases such as nitrogen, argon, and oxygen

Minimum Order: 1 sets
