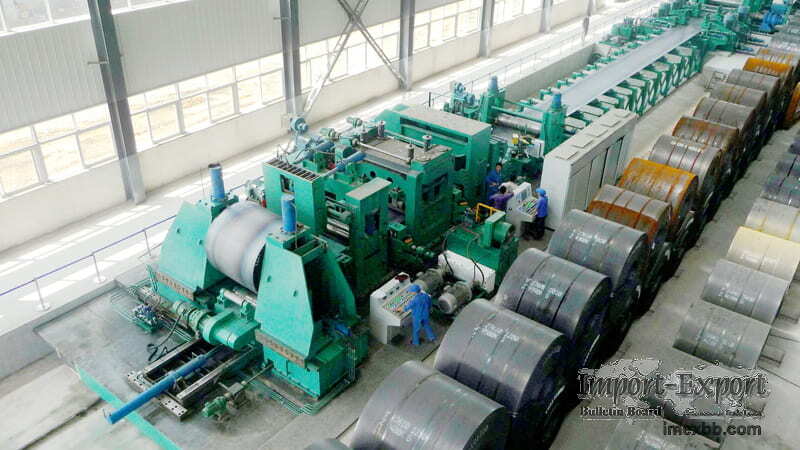

Large Diameter Spiral Pipe Mill

Spiral pipe mill is used to roll the low carbon steel/ low alloy steel strip
into a tube by a certain forming angle, further weld it into steel pipe by
submerged arc welder.
Large diameter pipes can be produced with a narrow steel strip. Our pipe mill
for sale is of high quality and can be applied in many fields.

Large Diameter Spiral Pipe Mill Applications
For liquid delivery: water supply& drainage;
For gas delivery: coal gas, steam and LPG;
For structural use: piling pipe, structural pipe in the field of bridge, dock,
road, and construction, etc.

Large Diameter Spiral Pipe Mill Process Flow
Feeding
Decoiling
Leveling
Sheari , ng & butt welding
Rotary shear
Edge milling
Main drive
Pre-bend & guide board
Forming
Inside welding
Outside welding
Cutting off
Pull out
End-facing & beveling
Hydro testing
Collection

Fi , nished pipes

Large Diameter Spiral pipe mill Applications
Large Diameter Spiral Pipe Mill Technical parameters

Model Specification Coil Width Thickness Coil Weight
Capacity(Kw) Area
(mm) (mm) (mm) (ton) (Estimate M)
RFT-426 Φ219~Φ426 400~750 5~8 10 200 20×96
RFT-529 Φ219~Φ529 400~800 5~10 15 300 20×96
RFT-630 Φ219~Φ630 450~1050 5~12.7 15 400 20×96
RFT-720 Φ219~Φ720 500~1250 5~12.7 15 500 24×108
RFT-820 Φ219~Φ820 500~1300 6~12.7 20 500 24×108
RFT-1020 Φ219~Φ1020 500~1300 6~12.7 20 800 24×108
RFT-1420 Φ325~Φ1420 500~1560 6~18 30 1000 26×126
RFT-1620 Φ426~Φ1620 500~1560 6~20 30 1500 26×126
RFT-1820 Φ508~Φ1820 1100~1600 8~25.4 30 1500 30×180
RFT-2020 Φ508~Φ2020 1200~2000 8~25.4 40 1500 30×180
RFT-2400 Φ508~Φ2400 1200~2000 8~25.4 40 1800 30×180
RFT-3000 Φ508~Φ3000 1200~2000 8~25.4 40 1800 30×180

Main equipments Components of the Production Line
1.Decoiler
2.Pinching & leveling machine
3.Manual/Electrical roll
4.End - Cutting & butt-welding machine
5.Rotary shear
6.Delivery machine
7.Guide board
8.Forming unit
9.Front bridge
10.Inside/outside welding device
11.Rear bridge
12.Flying saw cutter
13.Buried parts
14.Hydraulic system
15.Electric system
16.Inside/outside welder
17.Butt-weld car
18.Plasma cutter
19.Weld flux processing device
20.Beveling & end-facing machine
21.Hydraulic tester
22.Finishing equipment

Related Information
Machine Condition Fully New, A Grade quality
Size As requests
Power Supply 220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment Weight About 30ton-300ton
Dimension 40m–400m (length) x 3.8m-40m (width)
LOADING SIZE Normally need 4-30 x 40' containers
Equipment Color normally Blue/Green/White, or as requests
Place of Origin Zhejiang, China (Mainland)
Packing Standard and careful export packing

Related Large Diameter spiral welded pipe mill
API Pipe Mill For Oil Transportation
Big Size tube mill Line
Stainless Steel Tube Mill Line

Minimum Order: 1 sets
