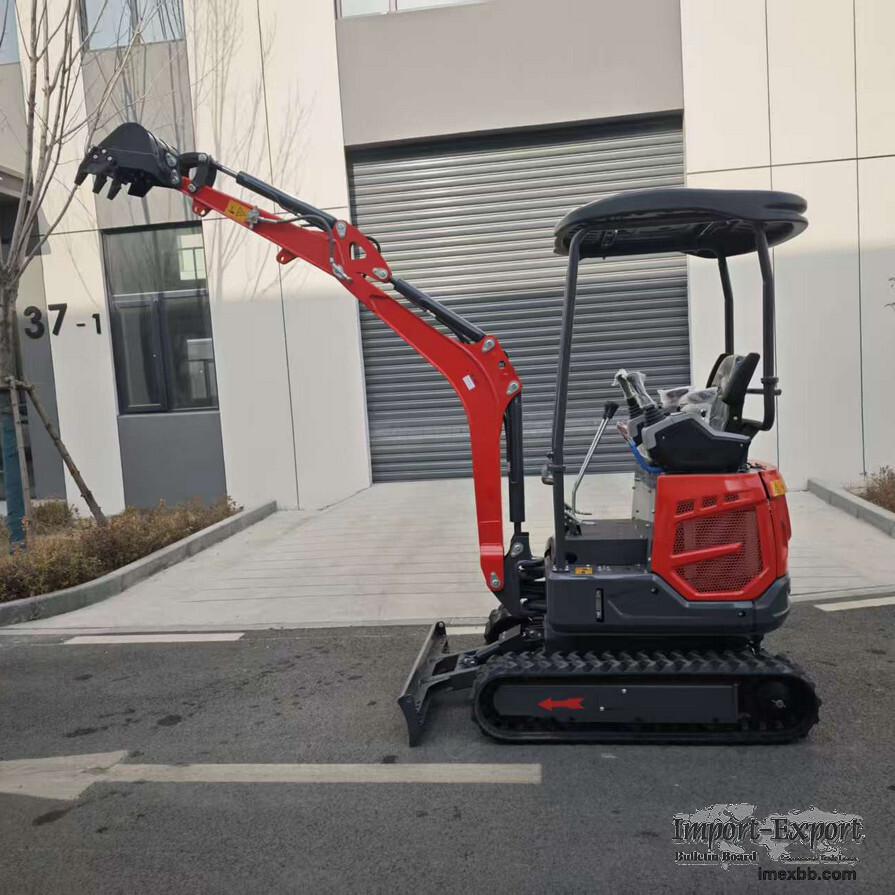

Micro Excavator Model TC15A

Application:
It is the smallest one among our products. It is compact, agile, and easy to
transport, featuring excellent heat dissipation. It is capable of operating in
confined spaces such as during indoor elevator renovation projects and is also
well-suited for orchard work, including planting, trenching, fertilizing, and
weeding.

Feature:
1. Simple and safe; Compact and flexible, capable of working in elevators
2. The pilot armrest boxes on both sides can be flipped up, and the wiring
harness adopts linkage protection;
3. Structural parts are made of stainless steel or plastic to prolong service
life;
4. Simple and convenient operation, featuring pilot-operated telescopic and
deflection functions on both sides; equipped with a safety protection net and
anti-rockfall design for enhanced operational safety.

Main Technical Parameters of Micro Excavator Model TC15A
Spec: Rubber Track
Weight: Gross Weight: 1250 kg
Engine Type: Water-cooled
Model: KUBOTA D722
Rated Output Power/RPM kW: 10.2/2500 (HP)/rpm
Track:
Track Size: 230*72*43
Track Width: 230 mm
Bucket Standard Bucket Capacity: 0.025 m³
Standard Bucket Width: 400 mm
Working Performance Max Digging Force (Bucket): 9KN
Max Digging Depth: 1991 mm
Max Vertical Digging Depth: 1511 mm
Max Digging Height: 2928 mm
Max Dumping Height: 2090 mm
Max Digging Reach at Ground Level: 3396 mm
Min Front Swing Radius: 1427 mm
Max. Deflection Angle (Left/Right): 40/50 Degree
Track Telescopic Range: 1120 mm (990-1165)
Speed:
Travel Speed: 1.8 Km/h
Swing Speed: 9.5 rpm
Hydraulic System:
Pump Type: Gear Pump
Pump Flow: 20 L/min
System Pressure: 16 MPa
Fuel Tank Capacity:
Diesel Tank: 10.5 L
Hydraulic Oil Tank: 16 L
Transport Dimensions:
Overall Length × Overall Width × Overall Height: 3249*1120*2314 mm
Note: Images are for illustration purposes only, actual product may vary. All
specifications and design characteristics are subject to change without prior
notice.

Mini Excavator, Mini Digger, Compact Excavator, Micro Excavator, Mini-Hoe,
Mini-Ex, Mini Hoe, Mini Ex, Small Excavator, Track-hoe, Mini Excavators, Mini
Diggers, Compact Excavators, Micro Excavators, Mini-Hoes, Mini-Ex’s, Mini
Hoes, Mini Ex’s, Small Excavators, Track-hoes, Chinese Mini Excavator, Chinese
Mini Digger, Chinese Compact Excavator, Chinese Micro Excavator, Chinese Mini-
Hoe, Chinese Mini-Ex, Chinese Mini Hoe, Chinese Mini Ex, Chinese Small
Excavator, Chinese Track-hoe, China Mini Excavator, China Mini Digger, China
Compact Excavator, China Micro Excavator, China Mini-Hoe, China Mini-Ex, China
Mini Hoe, China Mini Ex, China Small Excavator, China Track-hoe, Mini Excavator
Made in China, Mini Digger Made in China, Compact Excavator Made in China,
Micro Excavator Made in China, Mini-Hoe Made in China, Mini-Ex Made in China,
Mini Hoe Made in China, Mini Ex Made in China, Small Excavator Made in China,
Track-hoe Made in China, Mini Excavator from China, Mini Digger from China,
Compact Excavator from China, Micro Excavator from China, Mini-Hoe from China,
Mini-Ex from China, Mini Hoe from China, Mini Ex from China, Small Excavator
from China, Track-hoe from China


Note:
1. Technical specifications are for standard model (without cabin) only.
2. Other optional parts & accessories and colors are available upon request.
3. All specifications and design characteristics are subject to change without
prior notice.

Minimum Order: 1 sets
