MR762 (USB HID interface & keyboard simulator, Read card only, Programable

Overview
MR762 series desktop contactless IC card reader is based on NXP series RF chip
with high performance MCU. The communication is according to USB HID standard.
There are 2 USB devices to implement the functions. One is USB keyboard for
DATA output. The other is USB compliant device for DATA output format
configuration and ISP function. The DATA output format is very flexible. The
reader could output any sector any byte in any format. TransConfig, the
configuration tool is very easy to use to load the configuration file to
reader. The configuration file is easy to build. Please to read “JINMUYU USB
HID Keyboard Simulator IC Card Reader General Technical Manual.pdf” to build
the configuration files. And we will help you to make the configuration file.
The reader supports the IC card according to ISO14443A, ISO14443B and ISO15693
standard.
Main Characteristics
• USB HID keyboard simulator data output
• Data output format is very flexible
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
Technical parameters
• PCD: NXP MF RC500, MF RC531, SL RC400, CL RC632
• Working frequency: 13.56MHz
• RF protocol: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• Display: 1 tricolor LED
• Buzzer: Build in
• Interface: dual port, USB HID keyboard simulator and USB HID compliant device
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 123mm * 88mm * 25mm
• Weight: About 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: no need, direct output to editor
• ISP: Terms
• RoHS: Compliant

Minimum Order: 1 pieces

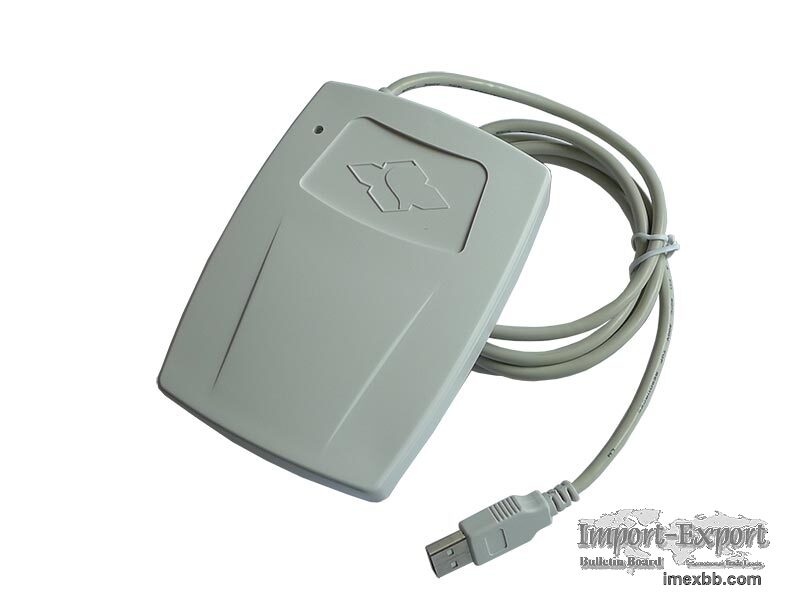

MR762  (USB HID interface & keyboard simulator, Read card only, Programable
