MR780 (Master Reader Classic, RS232C or USB bridge)

Overview
MR780 series desktop contactless IC card reader/writer is base on NXP series RF
chip with high performance MCU. The reader fully supports the IC card according
to ISO14443 and ISO15693 standard, especially completely supports ISO14443-4
contactless CPU card. The reader builds in 3 SAM slots, and fully supports SAM
according to ISO7816.
Main Characteristics
• Full function PC software
• High speed MCU and advantage firmware provide very high card process speed
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
Technical parameters
• PCD: NXP MF RC500, MF RC531, CL RC632, SL RC400
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM card slot: 3 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
• Display: 1 tri-color LED
• Buzzer: Build in
• Interface: RS232C or USB (build in CP2102 USB to RS232 bridge)
• Baud rate: 9600~115200bps
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 123mm * 88mm * 25mm
• Weight: about 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: TransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces

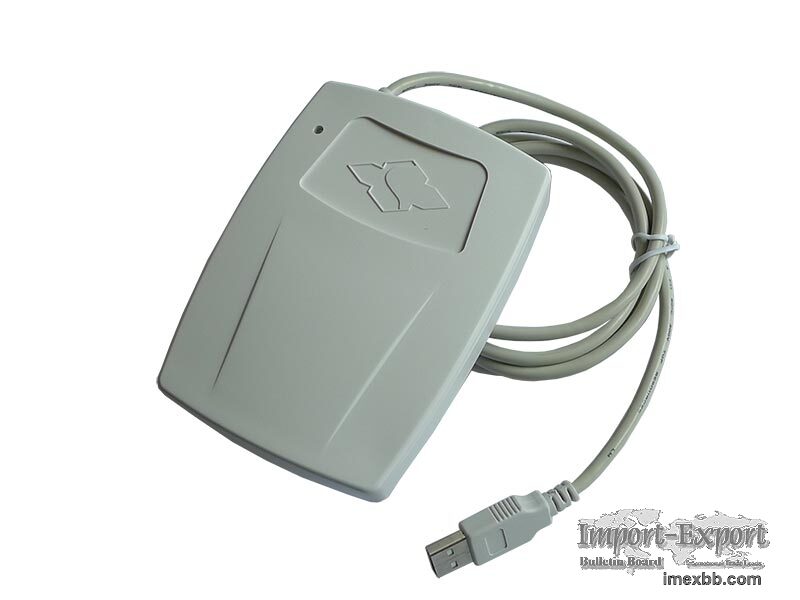

MR780  (Master Reader Classic, RS232C or USB bridge)
