MR810 (Compatible USB PCSC Interface)

MR810 series desktop contactless IC card reader/writer is base on NXP series RF
chip with high speed ARM7 MCU and advantage firmware, providing very high card
process speed. MR810's RF interface and protocol process is with EMV2010 LEVEL
1 certification ability, fully compatiable with ISO14443, ISO15693, especially
completely supports ISO14443-4 contactless CPU card. The communication is
according to USB PC/SC standard. The reader builds in 2 SAM slots, and fully
supports SAM according to ISO7816.
Main Characteristics
• Compatible USB PC/SC interface
• ARM7 MCU and advantage firmware provide very high card process speed
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
• Support many kind of card/tag
Technical parameters
• PCD: NXP MF RC531, CL RC632
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM card slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
• Display: 1 tri-color LED
• Buzzer: Build in
• Interface: USB PC/SC compatible
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 123mm * 88mm * 25mm
• Weight: about 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: PTransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces

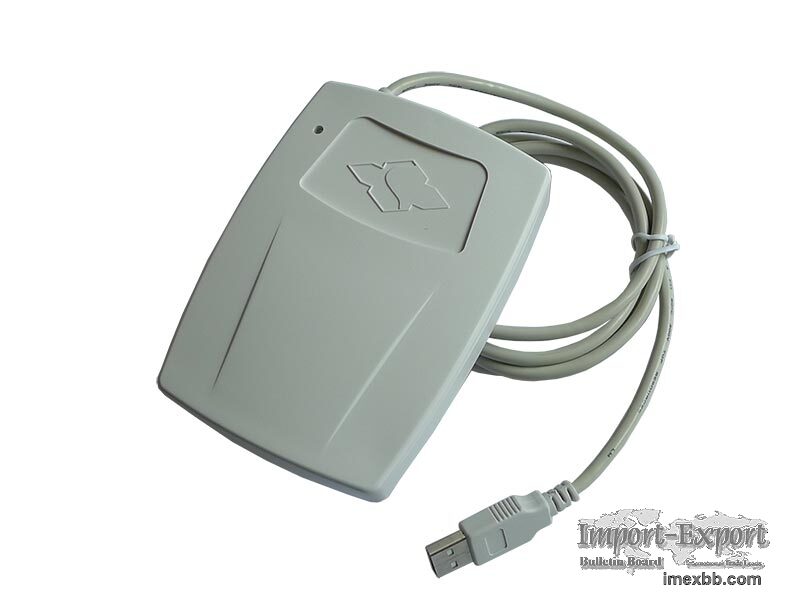

MR810  (Compatible USB PCSC Interface)
