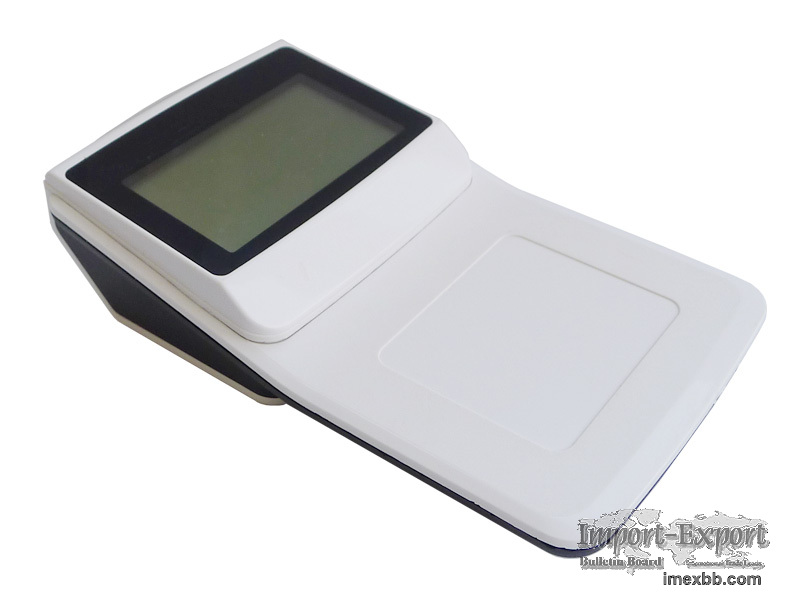

MR880 (Compatible USB PCSC Interface)

Overview
MR880 series desktop contactless IC card reader is based on NXP series RF chip
with high performance STM32 MCU. The communication is according to USB PC/SC
standard. The reader fully supports the IC card according to ISO14443 and
ISO15693 standard, especially completely supports ISO14443-4 contactless CPU
card. The RF interface and protocol process is with EMV2010 LEVEL 1
certification ability.
The reader builds in 4 SAM slots, and fully supports SAM according to ISO7816.
Main Characteristics
• 240 * 128 pixel LCD displayer
• 16 pixel, 24 pixel or 32 pixel Font available
• Chinese, English or Russian Font available
• Compatible USB PC/SC interface
• 120MHz High speed MCU and advantage firmware provide very high card process
speed
• RF protocol process with EMV2010 LEVEL 1 certification ability
Technical parameters
• PCD: CL RC663
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM slot: 4 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 230400bps)
• Display: 4 LED(Red,Yellow,Blue,Green) + LCD (240 * 128 pixel)
• Buzzer: Build in
• RTC: Yes
• Interface: USB PC/SC compatible
• Power supply: DC2.5V~12V
• Power consumption: 0.9W
• Dimension: 158mm * 92mm * 42mm
• Weight: About 220g
• Operating temperature: -25 ~ +85 ℃
• Storage temperature: -40 ~ +125 ℃
• PC software: PCSC, download from http://www.jinmuyu.com
• Sample code: VC
• ISP: Support
• RoHS: Compliant
