MR800 (Compatible USB PCSC Interface)

Overview
MR800 series desktop contactless IC card reader/writer is base on NXP series RF
chip with high performance ARM7 MCU. The communication is according to USB
PC/SC standard. The reader fully supports the IC card according to ISO14443 and
ISO15693 standard, especially completely supports ISO14443-4 contactless CPU
card. The reader builds in 2 SAM slots, and fully supports SAM according to
ISO7816. It has 128 * 64 pixel LCD displayer, and advantage firmware providing
very high card process speed. The RF interface and protocol process is with
EMV2010 LEVEL 1 certification ability.
Main Characteristics
• 128 * 64 pixel LCD displayer
• Compatible USB PC/SC interface
• High speed MCU and advantage firmware provide very high card process speed
• RF protocol process with EMV2010 LEVEL 1 certification ability
• support many kind of card/tag
Technical parameters
• PCD: NXP MF RC531, CL RC632, CL RC663
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM card slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
• Display: 4 LED + LCD (128 * 64 pixel)
• Buzzer: Build in
• Interface: USB PC/SC compatible
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 142mm * 86mm * 22mm
• Weight: About 200g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: PTransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces

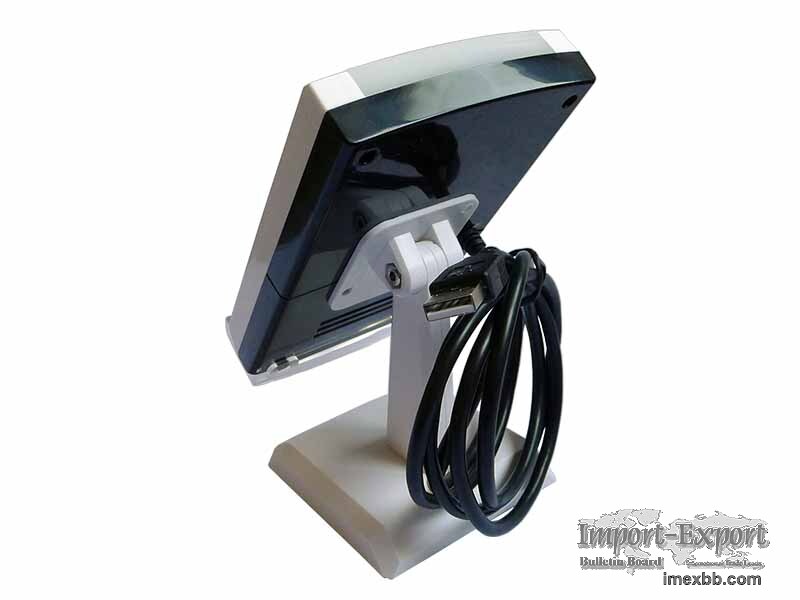

MR800  (Compatible USB PCSC Interface)
