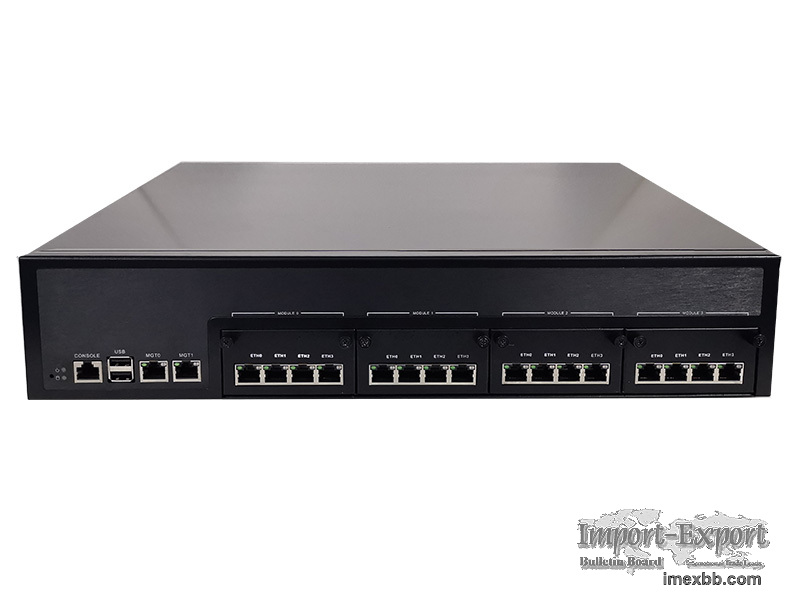

Network Appliance supports up to 32 Gbe networking ports

Network appliance support max 32 gbe
F23224 is a x86 rackmount network hardware appliance with network application
motherboard based on Supports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four
lan cards up to 32 GbE or 8 10G SFP network ports. It's ideal for DDoS,
enterprise UTM, enterprise firewalls, intrusion prevention systems (IPS),
application delivery and WAN optimization.

Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
Intel C236 chipset
Four dual channels 2133/2400MHz DDR4 slots, up to 64 GB
Two GbE Console ports, support four NIC modules up to 32 GBEs
Four SATA3.0 6Gb/s, support RAID 0, 1, 5, 10
Supports USB3.0, mSATA, COM
Motherboard

CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
Chipset Intel C236
BIOS UEFI BIOS
System memory Four dual-channels DDR4 ram slots, up to 64GB

Storage

Interface Four SATA3.0 connectors support RAID 0, 1, 5, 10
Hard Drive Four 3.5/2.5" HDD trays
SSD One mSATA slot

Ethernet

LAN Port Two 10/100/1000Mbps RJ-45 ports
Ethernet Controller Two Intel PCIe controllers

System I/O

USB Two USB3.0 Internal with four USB2.0 and two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Watchdog Timer Software programmable supports 1~255sec System reset
Expansion Four PCIex8 for 4 expansion lan cards and one built-in PCIEx4

Power supply

Power consumption Built-in 300W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 550x440x88mm
Weight 18.3 kg

Minimum Order: 1 pieces

Network Appliance supports up to 32 Gbe networking ports
