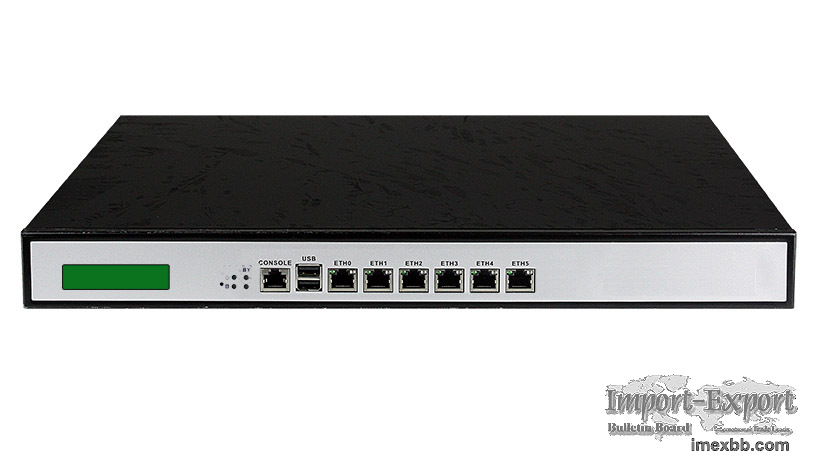

Rackmount Network Appliance Hardware based on Intel C206 or C236 Chipset

F20611 is a Network Appliance Hardware platform based on Intel C206 /H110/
C236 Chipset, use supports the Gen2/3/6/7th generation Intel Core processors
(codenamed Kaby Lake). The high performance and I/O rich appliance is
developed for #networksecurity, #cloudcomputing #datacenters.
Network hardware platforms appliance use latest chips for Linux, fedora,
CentOS, kernel2, Endian, pfSense, ubuntu


network security appliances based on latest chipset and network chip

There are 4~32Gbe (RJ45 or SFP) firewall hardware appliances (1u or 2u
height) for your choosing. which support Linux, fedora, CentOS, kernel2,
Endian, pfSense, ubuntu, etc. for for firewall, UTM, load balancing and
traffic monitor system

1U network appliance c206 chipset 6 Rj45 GbE i3 i5 i7 CPU, single or
redundant power supply
Features

Supports Intel Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
Intel C206 chipset
Four 240-pin 1333/1600MHz DDR3 DIMM slots, up to 32 GB
Six Intel PCIe GbE controllers, support two channels bypass
Three SATA2.0 and one SATA3.0 interface,
One/two HDD trays supports RAID 0, 1, 5, 10
Supports USB, CF TypeII, COM
Specifications

Motherboard

CP , U Support Intel Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
Chipset Intel C206
System memory Four DDR3 slots, up to 32GB
Storage

Interface Two SATA2.0 and one SATA3.0 connectors
Hard Drive Supports one 3.5/2.5" HDD tray
CF slot One CFII slot
Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports

Ethernet Controller Six Intel PCIe GbE controllers

BYPASS Two channels BYPASS

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS
function LED
System I/O

USB Two USB2.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One PCIex16 and one PCIex4
Power supply

Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x44.5mm
Weight 12.8 kg
Ordering informations

F20611-B2 1u rackmount chassis, Motherboard with Intel C206 Chipset, 6 x GbE
RJ45, 2 channels bypass, 250W PSU
F20611-B2P2 1u rackmount chassis, Motherboard with C206 Chipset, 6 x GbE
RJ45, 2 channels bypass, 350W redundant PSU
Optional Nic Modules

58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB
controllers
58F4 4 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB
controllers
58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel
82580EB controllers
58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB
controllers
58F8 8 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB
controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB
controllers, with one channel Bypass
59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES
controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES
controllers, with one channel Bypass
