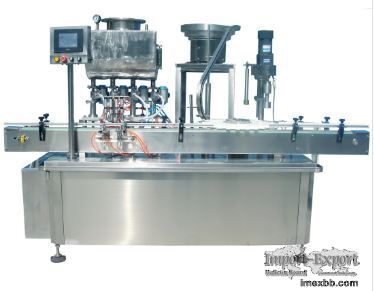

ODM Essential Oil Dispenser Pump Filling Capping Machine For 100-1000ml Bot

Automatic Cheap 100-1000ml Bottle Can Liquid Essential Oil Filling Capping
Machine Filler
one machine two function, filling and capping



Functions:

1.Adopt stainless steel pump in common use in special use to fill high
precision, large range of adjusting dosage.
2.Low level liquid receiver ,be convenient to clean.
3.Not fill without bottle, automatic stop as no drop leak
4.Filling system has the function of shrinking ,no drop leak
5.Apply to fill various kinds of viscosity.
6.Filling nozzles is diving into bottle to fill and moving up slowly, avoid
bubbling.
7.Filling and capping are in one body of bottle to the machine, economical and
low space possessing.
8.The whole machine is designed according to requirements of GMP.


Technical parameter:



Filling volume 100-1000ml
Tolerance of filling quantity
≤±1% standard filled quantity

Yield of cap-rotating

≥99.9%
Power supply 380V/220V 50Hz,3phase
Power 1.5KW
Air supply

0.3-0.4MPa
Weight
approx.800kg

Overall dimension (L*W*H)2500*1000*2000mm
Production capacity(500ml) 1200-2400bottles/hour
