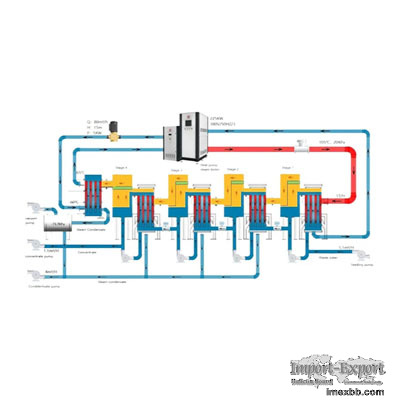

PanEVAP & MVR system

A multiple-effect evaporator is a device that efficiently uses steam heat to
evaporate water. Water is boiled in a series of heat exchangers, each at a
lower pressure than the last, in a multiple-effect evaporator.
The benefits of multiple effect evaporators include their suitability for
large-scale and continuous operation. When compared to a single effect, it is
extremely cost-effective. Multiple effects are employed to reduce the amount of
energy required to evaporate unwanted water content.
Mechanical Vapor Recompression (MVR) is an energy recovery process that is used
primarily in industrial settings. The process involves compressing low pressure
vapor to a higher pressure, which increases its temperature. The heated vapor
is then fed back into the system to be used as a heat source for evaporation or
distillation processes. By compressing the vapor, the MVR evaporation system
recycles the thermal energy that would otherwise be lost. This makes the
process highly energy-efficient as it reduces the need for external heating
sources.
