Razor Wire

Razor wire is available in different blade types to suit different security
requirements. BTO series blades are commonly used for standard razor wire and
concertina coils. They are produced from galvanized steel or stainless steel
with blade lengths from 12 mm to 30 mm. BTO-22 and BTO-25 are the most
frequently ordered types for perimeter fencing and industrial security.
East of Weimin Street, Anping County, China
sales@bxwiremesh.com
+86-19134185927 +86-13184973926
WhatsApp: +86-19134185927
www.bxwiremesh.com

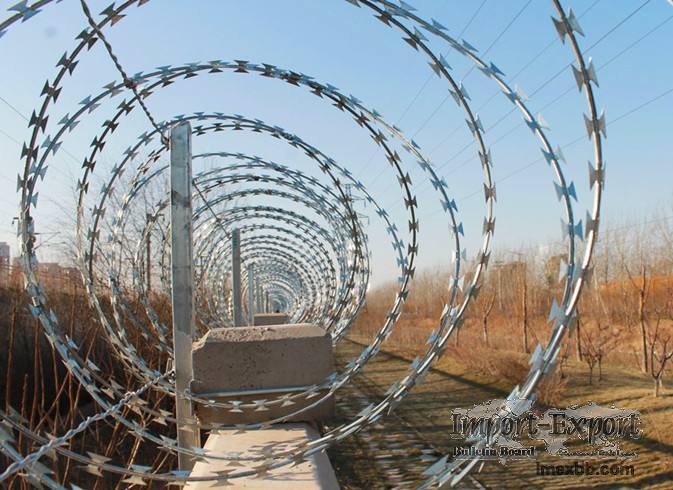

Razor Wire is used for perimeter fencing, wall topping, restricted-area
protection, and site security. It is also called razor barbed wire, barbed
tape, or concertina wire. The product is made with a steel core wire and
punched blade tape. Common materials are galvanized steel and stainless steel.
Main types include single coil razor wire, concertina razor wire with clips,
welded razor mesh, triple strand concertina wire, and rapid deployment razor
wire system (available by order). Blade type, coil diameter, loop number, coil
length, material, and packing should be confirmed before quotation.

Specifications
Product Name: Razor Wire, razor barbed wire, concertina wire, barbed tape

Material: Galvanized steel or stainless steel

Structure: Steel core wire with punched razor blade tape

Blade Types: BTO-12, BTO-15, BTO-22, BTO-25, BTO-30, CBT-60, CBT-65

Blade Thickness: BTO type commonly 0.5 ± 0.05 mm; CBT type commonly 0.6 ±
0.05 mm

Core Wire Diameter: Commonly 2.5 ± 0.1 mm

Blade Length: BTO-12: 12 ± 1 mm; BTO-15: 15 ± 1 mm; BTO-22: 22 ± 1 mm; BTO-
25: 25 ± 1 mm; BTO-30: 30 ± 1 mm; CBT-60: 60 ± 2 mm; CBT-65: 65 ± 2 mm

Blade Width: BTO-12, BTO-15, BTO-22: 15 ± 1 mm; BTO-25: 16 ± 1 mm; BTO-30: 18
± 1 mm; CBT-60: 32 ± 1 mm; CBT-65: 21 ± 1 mm

Barb Spacing: BTO-12: 26 ± 1 mm; BTO-15: 33 ± 1 mm; BTO-22: 34 ± 1 mm; BTO-
25: 40 ± 1 mm; BTO-30: 45 ± 1 mm; CBT-60 and CBT-65: 100 ± 2 mm

Coil Type: Single coil or concertina cross coil with clips

Common Outside Diameter: 450 mm, 500 mm, 600 mm, 700 mm, 800 mm, 960 mm

Common Coil Length: Around 8 m to 16 m per coil, depending on diameter and loop
number

Surface Finish: Hot dipped galvanized, electro galvanized, or stainless steel
by order

Packing: Compressed coil, woven bag, carton, pallet, or project packing

Safety Note: Razor wire has sharp blades. Installation should be handled with
gloves, tools, and local safety rules.

Click to Enlarge
