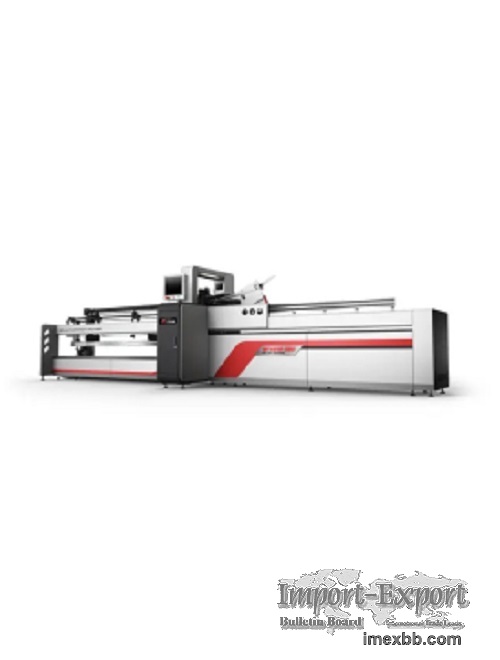

RFAD10 Full-Automatic Drawing-In Machine

RFAD10 Full-Automatic Drawing-In Machine
RFAD10 full-automatic drawing-in machine is a kind of drawing-in equipment
based on seed yarn mode. Drawing-in is not related to the loom beam, so pre-
drawing can be conducted in advance, pre-drawing is parallel to the previous
preparation procedure. The automatic drawing-in machine can quickly respond to
market demand. After the completion of the drawing-in operation, the
shuttleless weaving machine can be stored OEM production can be achieved, and
the transportation is convenient. The whole machine has low energy consumption.
The instantaneous power is less than 1KW, the gas consumption is 0.3m³/min, and
the use cost is extremely low.

Specification of RFAD10 Full-Automatic Drawing-In Machine
Item Content Remark
Working with 2300mm, 2800mm, 3600mm Series
Yarn count Cotton/TC
Speed 135 Times/min Instant fastest
Heald J, C, O Optional
Heald height 260mm—382mm Adjustable
Heald thickness 0.2mm, 0.3mm Adjustable
Hole size 5.5x1.2mm-8x3.8mm Adjustable
Heald stock 2 lines feed
Heald lines Max 16 lines
Dropper type closed
Dropper lines 6 lines
Dropper width 11mm
Dropper length 145mm, 165mm, 180mm Adjustable
Dropper thickness 0.2mm, 0.3mm, 0.4mm, 0.5mm Optional
Reed type Standard or profiled reeds
Dent density 15～75 dents/inch
Lease Lease 2 groups signal 4 lines
Electric control PLC, controller of movement & vision
Input system Computer touching screen
Driving Servo motor, cylinder
Power 3-hp 380V, 50/60HZ, 3.0kW
Pneumatic 0.3m³/min, 0.4-0.7Mpa.
Harness Standard supply of 2 sets
Remark:
The actual drawing speed is related to weaving design, accessories, working
surroundings, quantity of workers, and harness transport cart. More total warp
ends, better drawing efficiency.


Item Specification L=Length (mm) W=Width (mm) H=Height (mm) Weight
(kg)
Drawing machine RFAD10-230 6100 1600 1700 1400 (not including
cart)
RFAD10-280 7100 1600 1700 1490 (not including cart)
RFAD10-360 8500 1600 1700 1600 (not including cart)
Harness transport car 230cart 3000 650 1300 180
280cart 3700 650 1300 197
360cart 4300 650 1300 223

Features of RFAD10 Automatic Drawing-in Machine
1
This automatic drawing-in machine uses all the worldwide advanced technology,
adopts seed-yarn drawing type. As a shuttle less loom weaving machine, it does
not matter to sizing quality, can make drawing in advance, store and transport.

2
The whole shuttleless machine has extremely high cost-effectiveness,with a
maximum instantaneous warp speed of 135 threads/minute. It is easy to maintain
and maintenance cost is low.

3
Independent intellectual property right, completely designed by RIFA.

4
Rely on RIFA textile machine company's after-sale service, ensuring machines
trouble free.
