Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt

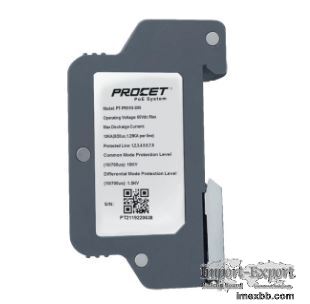

Procet Indoor DIN Rail Industrial Zinc Alloy IP40 PoE Surge protector,
operating voltage 60Vdc(Max), Output 110W (Max.), Surge protection 10Kv,
Working temperature at -40℃ to 85℃.



Technical Parameter :

Parameter Description
Key Features DIN rail mounted
DIN rail is the ground wire
Part Number PT-PR01G-DIN
Ports condition PoE Port*2
Regulatory Compliance IEEE802.3bt or PoE ++
RoHS Compliance
WEEE Compliance
Pass-Through Data Rates 10/100/1000 Mbps
Output Maximum Operating DC Current:1A for 2 pairs
2A for 4 pairs
Maximum 110W
Input Operating Voltage:60Vdc (Max.)
Working Environment Operating Temperature: -40℃ to 85℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
PoE Surge Protection Max Discharge Current: 10KA(8/20us,1.25KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV
Insertion Loss @10MHz/100MHz:-1db
Return Loss @10MHz/100MHz: -20db
Response Time:5ns
Warranty 5 year
Safety Approvals CE
