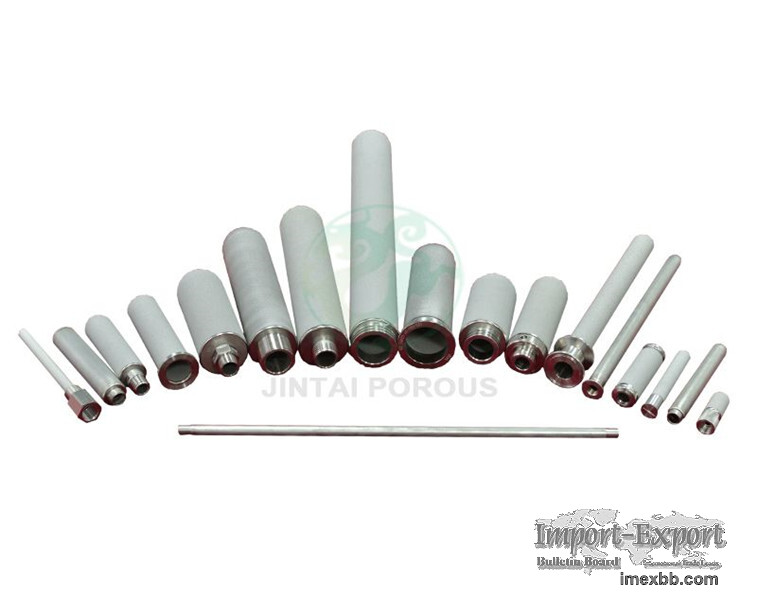

Sintered Porous Metal Filter Element

Sintered Metal Powder Filters

Jintai Company can produce porous metal filter elements of various materials
and sizes, and can also be customized according to customer requirements. We
select high-quality metal powder as raw materials and cooperate with strict
technology to provide customers with high-quality products. The filter element
of Jintai Company can also be made of various alloys with excellent properties,
and its high temperature resistance, corrosion resistance and other properties
can serve more working conditions.

JINTAI Sintered Porous Metal Filter Features
Uniform pore size
High temperature resistance
Chemical stability
No particle shedding
Can be cleaned online
Non-magnetic and non-toxic

Specifications
Material Selection Titanium
Stainless steel: 316L, 304L, 310S, 321, 904L
Hastelloy C22 C276
XInconel 600
Monel 400
Nickel
Other materials required by the customer
Filtration Grade 0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um
80um 100um
Other grade required by the customer
Data & Specifications Length: The longest seamless tube is 1600mm
Diameter: 4-450mm
Other specifications and sizes required by customers
Connection Thread, flange, flat pressing, quick connection, etc.
Other ways required by customers

Typical Application
Filtration and recovery of catalysts in chemical, pharmaceutical and other
fields
High temperature gas dust removal and filtration
High temperature and corrosive filtration process
Material vacuum conveying
Fermentation tank aeration
