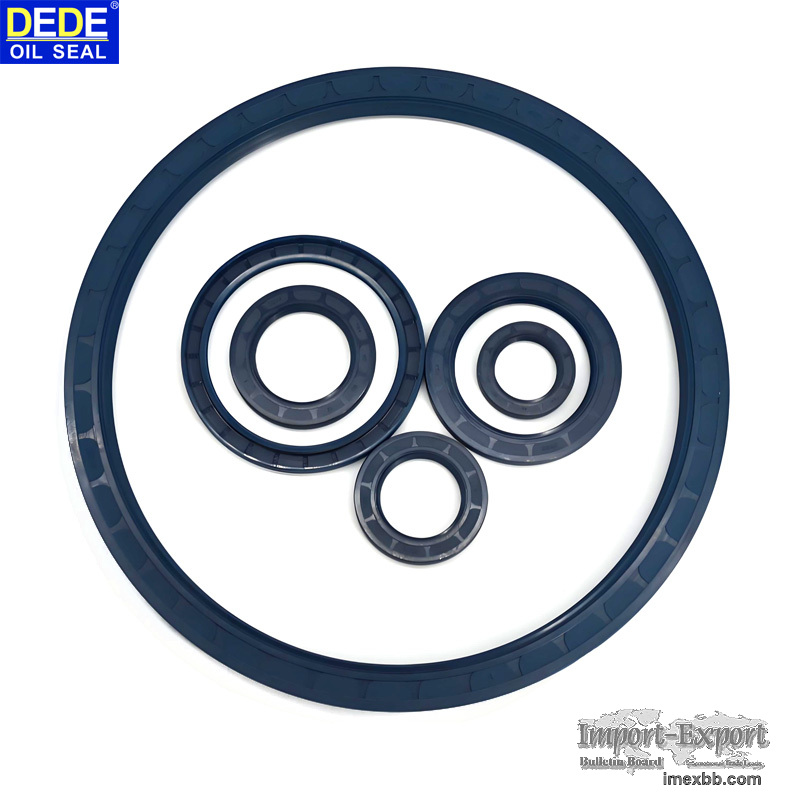

Skeleton Oil Seal High Performance Sealing Solution for Industrial Machiner

Choosing a skeleton oil seal is not simply a matter of matching inner and outer
diameters. The real question is whether the operating conditions of the machine
allow the sealing lip to maintain its contact pressure, oil film, and material
stability over time. When the seal structure and the equipment parameters are
aligned, leakage is rare; when they are mismatched, even a new seal may fail
prematurely. Understanding how each parameter influences sealing behavior is
the foundation of a reliable selection process.

Understanding What Actually Creates the Seal

A skeleton oil seal relies on three elements working together: the rubber body
that shapes the lip, the metal case that provides rigidity, and the garter
spring that maintains consistent radial load. The sealing action occurs at the
very thin edge of the lip. This edge must press lightly against the shaft while
allowing a microscopic lubricating film to form during rotation. If the shaft
surface is too rough, the lip wears quickly; if it is too smooth, the oil film
becomes unstable. The seal performs well only when the shaft condition,
temperature, speed, and lubrication environment support this delicate balance.

Key Parameters That Must Be Known Before Selecting a Seal

Several parameters determine whether a seal can be installed and function
correctly. These can be grouped into essential information and risk‑related
information.

Essential information

These factors determine whether the seal can physically fit and whether the
basic sealing function is achievable.

Shaft diameter, housing bore, and installation width

Operating speed, including continuous and peak values

Medium type, such as gear oil, hydraulic oil, fuel, coolant, or fluids
containing additives

Temperature range, including steady‑state and short‑term peaks

Sealing direction, such as oil retention only, dust exclusion, or sealing on
both sides

Without these details, selecting a seal becomes guesswork.

Risk‑related information

These factors influence service life and leakage probability. They often
explain why a seal fails even when the size is correct.

Shaft runout, eccentricity, and alignment

Surface roughness, hardness, and presence of spiral tool marks

Internal pressure or poor return‑oil conditions

External contamination such as dust, mud, or cleaning fluids

Installation constraints, including chamfers, shaft edges, and the ability to
use installation sleeves

In practice, the issues that are hardest to describe—runout, contamination,
pressure—are often the true causes of leakage.

Using Operating Conditions to Determine Seal Structure and Material

Once the equipment parameters are clear, the next step is to match them with
the appropriate seal design. This is not simply choosing a “model,” but
selecting a structure and material that can withstand the actual environment.

Speed and temperature

Speed influences frictional heat at the lip, while temperature affects the
elasticity and chemical stability of the rubber. Higher speeds require
materials with better heat resistance and lip designs that minimize friction.
Moderate‑speed applications may prioritize oil resistance and dimensional
stability. When speed and temperature combine unfavorably, the oil film becomes
unstable, and the lip may harden or wear prematurely.

Contamination level

In environments with dust, mud, or abrasive particles—such as construction
machinery, agricultural equipment, or outdoor drives—the lip is exposed to
external wear. A secondary dust lip or an external protective element helps
prevent contaminants from reaching the primary sealing edge. Without this
protection, abrasive particles can erode the lip and disrupt the oil film.

Medium compatibility

Different oils and fluids interact with rubber materials in different ways.
Additives, solvents, or fuel components may cause swelling, hardening, or
cracking if the material is not compatible. Understanding the exact medium is
essential for choosing between materials such as nitrile, fluoroelastomer, or
PTFE. A mismatch here often leads to early loss of elasticity and leakage.

Pressure and return‑oil behavior

skeleton oil seals are primarily designed for low‑pressure applications. If
the cavity builds pressure due to restricted return flow, high oil level, or
poor ventilation, the lip may be forced open. In such cases, improving the
system design or selecting a seal intended for pressure conditions is
necessary. Relying solely on a “stronger” seal rarely solves the underlying
issue.

Why Shaft Condition Determines Seal Life

Many sealing failures originate not from the seal but from the shaft. Three
aspects are especially important:

Surface roughness: Excessive roughness accelerates wear, while overly smooth
surfaces prevent stable oil film formation.

Hardness and wear resistance: A soft shaft may develop a wear groove over time,
making it difficult for a new seal to function properly.

Runout and eccentricity: When the shaft does not rotate concentrically, the lip
experiences fluctuating loads, leading to fatigue and oil film disruption.

For critical or continuous‑duty equipment, surface treatments or wear sleeves
can significantly improve long‑term performance.

Installation Conditions and Their Influence on Sealing Performance

Even a well‑selected seal can fail if installation conditions are unfavorable.
Sharp edges, insufficient chamfers, or unprotected keyways can damage the lip
during assembly. Uneven force during installation may deform the metal case or
cause the seal to sit misaligned in the bore. Ensuring proper installation
space, using suitable tools, and protecting the lip during assembly are
essential steps in achieving consistent sealing performance.

Building a Practical Selection Framework

A systematic approach helps ensure that all relevant factors are considered:

Identify temperature and medium to determine material.

Evaluate speed and frictional conditions to choose lip design.

Assess shaft condition to determine whether reinforcement is needed.

Consider environmental exposure to decide on dust protection.

Review pressure and return‑oil behavior to confirm suitability.

Check installation space and assembly conditions to finalize structure.

When these elements align with the seal’s capabilities, the sealing system is
far more likely to perform reliably over time.
