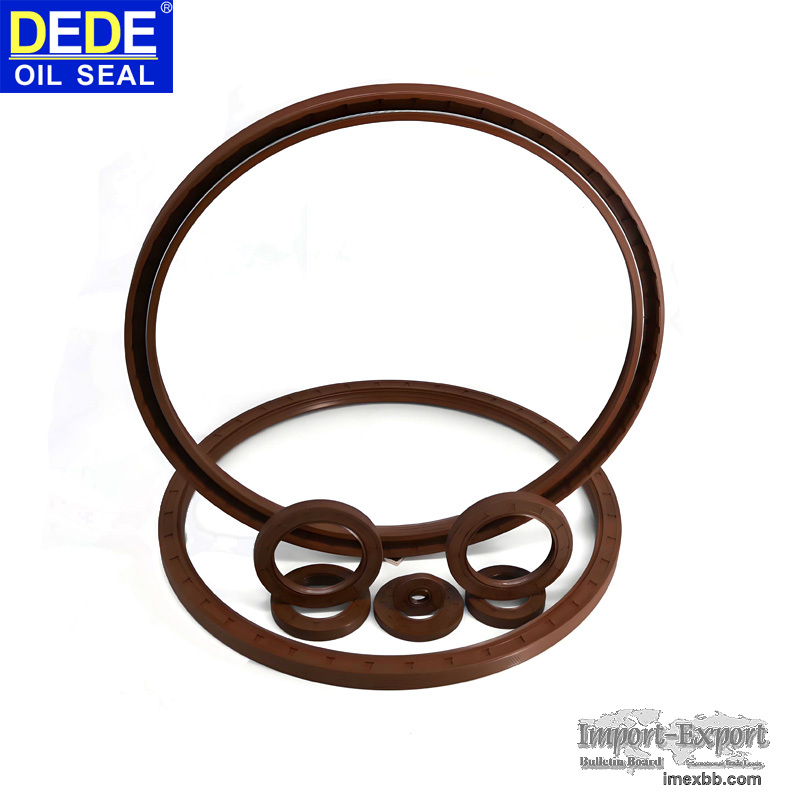

Skeleton Oil Seal NBR FKM PTFE Material for Industrial Machinery

For skeleton oil seals stored under proper warehouse conditions, a practical
control limit is about 3 years from the manufacturing date, and the upper
limit should not extend beyond 5 years. Once the storage time goes beyond
that window, the seal should be treated as an “expired” item and must pass
an inspection before it is allowed to be installed.

Why do we stay in the 3–5 year window?

Different elastomers, different limits

NBR-based oil seals Role: Workhorse material for mineral oil applications,
widely used and cost-effective. Typical policy: Many plants limit stock age
to about 3 years, with checks required after that. Reason: NBR is relatively
sensitive to oxygen, heat, and ozone, and tends to harden and lose
elasticity faster.

FKM-based oil seals Role: Used where high temperature and aggressive oils
are present. Typical policy: If stored correctly, 5 years is usually
acceptable, but many companies still review the parts after around 3 years.
Reason: FKM offers better resistance to heat and oxidation, yet it is not
immune to long‑term aging.

Special compounds (ACM, HNBR, etc.) Because volumes are lower and risk
awareness is higher, manufacturers and end users often adopt conservative
rules similar to NBR in terms of stock age control.

Rubber does not stay “fresh” on the shelf

Even when an oil seal is never installed, the rubber is changing all the
time:

Oxidation: Oxygen reacts with the polymer network, leading to chain scission
or extra cross‑linking. The seal feels harder and less flexible.

Ozone attack: Static rubber surfaces under slight strain are vulnerable to
micro‑cracks caused by ozone. These cracks may be invisible at first but
can become leakage paths in service.

Heat and light: High temperature, frequent temperature swings, sunlight or
strong UV light can multiply the aging rate.

Permanent deformation: If seals are compressed, bent, or stacked
incorrectly, the lip may take a permanent set and fail to exert enough
contact pressure on the shaft.

In practice, none of these processes has a sharp “deadline”. Instead, they
accumulate gradually, and the 3–5 year window is a compromise between
material capability and quality assurance.

What do standards and industry practices roughly say?

Different companies quote different numbers, but most of them are aligned
with generic rubber storage guidelines:

International rubber storage guidelines (such as ISO-type documents) These
usually state that rubber products can be stored for several years under
defined conditions, but must be re‑inspected after a certain period before
use.

European and automotive standards (e.g., some DIN/SAE-related documents)
They often keep the storage life of rubber sealing products in the order of
3–5 years and clearly separate “storage time” from “service life”.

That is why you will see things like:

A main equipment manufacturer specifying: “maximum stock age of oil seals:
3 years.”

A seal producer stating in its documentation: “recommended use within 5
years; re‑inspection required beyond this period.”

They are looking at the same technical reality from different positions: one
is a conservative quality policy, the other is a material capability
statement under ideal conditions.

Storage requirements you should enforce

Environmental conditions

Temperature: Keep long‑term storage within roughly +15 to +25°C, away from
heaters, steam lines, and hot air outlets.

Humidity: Maintain relative humidity in the 40%–70% range to avoid
corrosion of metal parts and mold growth.

Light: Store seals in closed boxes or opaque shelves, with no direct
sunlight or strong UV lamps.

Ozone: Do not place shelves next to electric motors, welding machines, or
high‑voltage equipment, as these are typical ozone sources.

Packaging and stacking

Keep original packaging: Do not break bags or boxes unless necessary;
re‑seal partially used inner bags carefully.

Avoid deformation: Do not overload cartons, and do not let sealing lips
press and twist against each other for long periods.

Keep away from chemicals: Do not store oil seals together with paints,
solvents, fuels, acids, or alkaline chemicals. Their vapors can damage
rubber.

Management practices

Track both manufacturing date and receiving date in your system.

Apply FIFO (first in, first out) strictly to avoid “forgotten stock”.

Carry out a visual and manual check at least once every 12 months for
hardness, elasticity, cracks, and lip condition.

If you want to formalize shelf life and storage of skeleton oil seals in
your organization, you can:

Define clear age limits:

Any seal older than 3 years in stock is labelled “re‑inspection required”
and cannot be installed directly.

Convert storage rules into a written procedure:

Specify temperature, humidity, light, ozone, and stacking requirements in
simple, enforceable clauses.

Classify by material:

Use stricter control for NBR, with slightly more flexibility for FKM, but
keep the absolute limit around 5 years.

Be extra cautious for critical equipment:

For high‑risk or high downtime‑cost applications, inspect every seal
before installation regardless of stock age.
