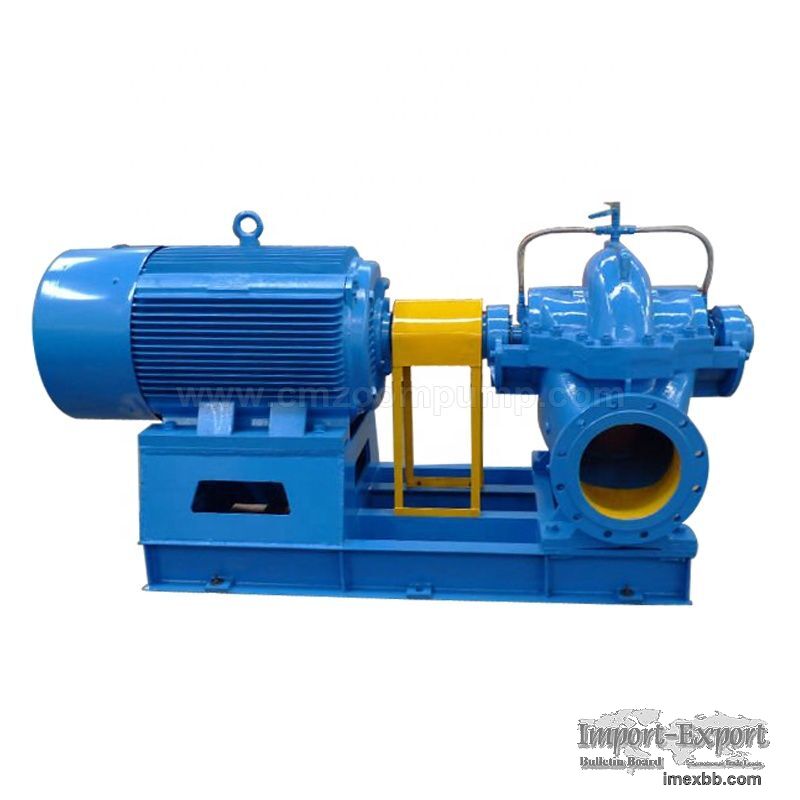

Split Case Pump

The Horizontal Split Case Centrifugal Pump, also known as a single-stage
double-suction centrifugal pump, is a remarkable pumping solution that offers
exceptional performance and ease of maintenance. Its unique design features a
split casing, with the suction and discharge ports positioned below the pump's
axis in a horizontal direction. This configuration allows for convenient
maintenance without the need to disassemble the inlet/outlet pipes or the
motor. Let's delve into the details of this versatile pump and its main
components.
The Split Case Centrifugal Pump is a high-efficiency double suction centrifugal
pump widely used in municipal water supply, industrial circulation systems,
HVAC projects, agricultural irrigation, fire protection systems, and power
plants. Designed with a robust split casing structure, this horizontal split
case pump delivers stable hydraulic performance, large flow capacity, low
vibration, and convenient maintenance.
