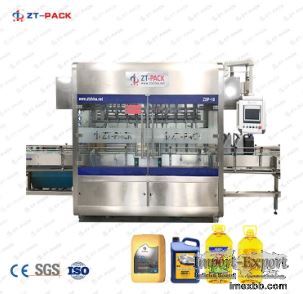

Ss316 6 Head Filling Machine

New Design Linear 6-16 Nozzles Flow Meter Liquid Filler Bottle For Car Oil
Lubricant Oil Filling Machines Packing Line



Description

This type filling system is flow meter type which is the better ideal for oils
filling packing

The principle of the elliptic gear flow meter is to measure the rotation of the
elliptic gear by the pressure head of the measured medium.

The greater the viscosity of the medium, the smaller the leakage from the gear
and the space gap, the greater the viscosity of the medium, the smaller the
leakage error and the more favorable for the measurement.

The elliptical gear flow meter has high accuracy and is suitable for the
measurement of the flow rate in the medium with high viscosity, especially for
the filling of different labels and different viscosity.



Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid /
engine oil / Lubricanting Oil kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
208L / 220L -1000L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L )

contact us for more details



Feature:

1.Stainless steel and sanitary pipes are used, and the connection parts are all
fast-connected.

2.A liquid holder which is controlled by an individual cylinder is installed
under the filling nozzles. It can avoid the pollution to the bottle after the
filling nozzles are OFF.

3.The material level sensor is used to check the level position under normal
running of the machine, plus with high and low level check and alarm device. A
filter is installed in the tank (very easy for disassemble). It can improve the
precision of filling and life of the filling valves.

4.We use the latest PTFE sealing parts which can improve the abrasion
resistance of the sealing parts (24 months). It solves the problem that piston
filling machine can not be used for SC, EC and high-viscosity.
