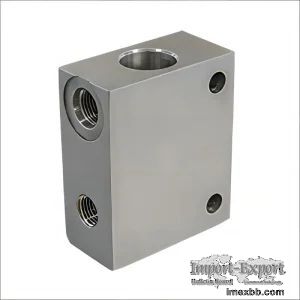

Sun Hydraulics Manifolds

The Sun Hydraulics supplier portfolio includes cartridge valves for pressure,
flow, logic, directional, and load controls, all available in up to 5
capacities. Sun’s standard manifolds are offered in an almost limitless
variety–including direct mount, line mount, sandwiches, subplates, and motor
mounts–and come in two basic materials: T6061 aluminum and ductile iron.

Product Introduction
Model number: XIW-S / MMV-S/ LAY-S
Wrought aluminum: In US, alloy 6061, temper designation T651 (The Aluminum
Association) (ASTM B221 for Extruded Bar); In EU, 6082T651. Maximum pressure
rating of 3,000 psi (210 bar), a proof rating of 6,000 psi (420 bar), and a
burst rating of 12,000 psi (840 bar).
Ductile (nodular cast) Iron, In US, Grade 65-45-12 (ASTM A 536); in EU,
EN16482:2014/ENGJS-400-15. Maximum pressure rating of 5000 psi (350 bar), a
proof rating of 10,000 psi (700 bar), and a burst rating of 20,000 psi (1400
bar).

Aluminum Surface Treatments: Standard Options
Clear Anodize - Class I, Type II Anodizing per Mil-A-8625F
Black Anodize - Class II, Type II Anodizing per Mil-A-8625F

Ductile Iron Surface Treatments: Standard Options
Dewatering Oil (SUN S-247-000)– Dewatering oil offers limited corrosion
protection during shipping and storage. Amount of corrosion protection is
minimal and varies depending on the environment it is stored in. This is the
standard option for custom integrated packages and three-letter bodies.
Chemical Blackening (SUN S-247-001)– Black oxide coating offers limited
corrosion protection during shipping and storage. Amount of corrosion
protection is minimal and varies depending on the environment it is stored
in.
Trivalent Clear Zinc with Top Sealer (SUN S-247-017)– Trivalent Clear Zinc
with Top Sealer is rated for 96 hours of protection per salt fog test per
ASTM B117 or ISO 9227 5% saline. Trivalent Clear Zinc with Top Sealer is RoHs
compliant.
Clear Zinc Nickel with Top Sealer (SUN S-247-018)– SAE AMS 2417,
composition contains 10% to 20% Ni, with clear trivalent chromate treatment
is rated for 1000 hours of protection per salt fog test per ASTM B117 or ISO
9227 5% saline. Clear Zinc Nickel is RoHs compliant.
