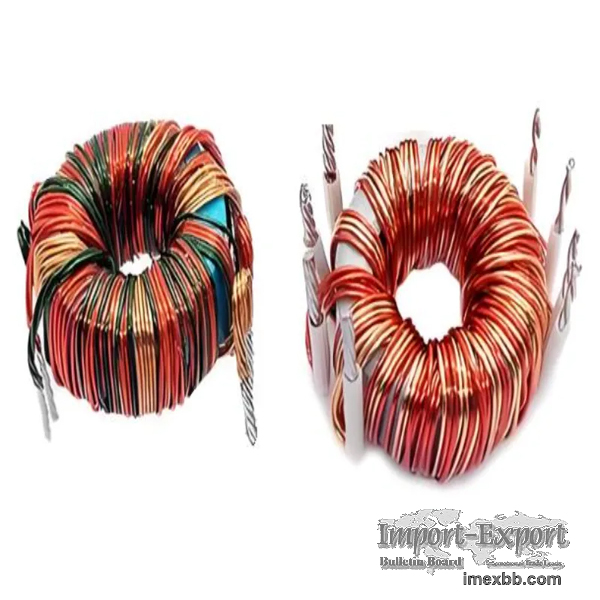

TOROIDAL TRANSFORMER

1. High Efficiency
Seamless toroidal core (ferrite/powdered iron) minimizes core loss (<1.1W/kg)
and achieves >95% efficiency.
Low no-load current (<10% of laminated transformers).
2. Low EMI/Noise
Closed magnetic path reduces flux leakage (<0.1% typical).
Vibration-free operation (<20dB at full load).
3. Compact Design
50% smaller/lighter than equivalent EI-core transformers (e.g., 40×75mm/0.6kg
for 50W).
4. High-Frequency Operation
 Optimized for kHz–MHz range with Litz wire windings to mitigate skin effect.
5. Thermal Reliability
 Uniform heat dissipation (ΔT <25°C at 25°C ambient).
 Wide temp. range (-40°C to +130°C).
6. Frequency Range: 1kHz-100kHz(Medical-specific frequency bands).
