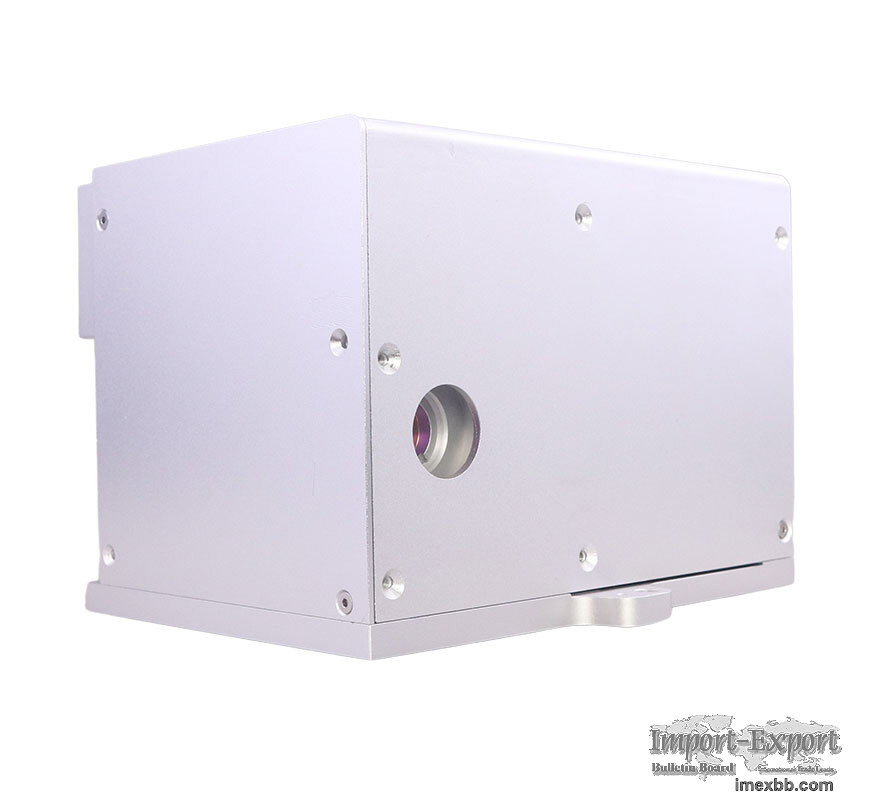

VCM Z

The traditional Z-axis focusing module adopts voice coil motor or galvanometer
structure, which has high load quality, slow response time and low dynamic
performance. VCM Z-axis focusing module breaks through the traditional
perspective optical path design scheme and greatly improves the dynamic
performance of the Z-axis focusing module. The highly innovative Z-axis
structure design greatly reduces the following error, making the dynamic
performance of Z-axis and XY galvo match perfectly, and ensures that the
scanning speed of the 3D galvanometer is not restricted by the dynamic
performance of Z-axis.

Key Features Of Vcm Z

Use only reflective elements, reducing thermal lensing in high power
applications

No complex mechanical structure, ensure the stability of long time operation

Modular design, easy to assemble

Highly innovative Z-axis structure design significantly reduces following error
and perfectly matches z-axis dynamic performance to XY axis
Specifications Of Vcm Z

VCM Z
Input Beam Aperture（mm） 14
Output Beam Aperture（mm） 14
Stroke（mm） ±15(Focus range)
Tracking Error（ms） ≥0.15

Focus Speed（m/s） up to 20m/s (f=160mm)
Repeatability (μm) ＜1
Nonlinearity（%） 0.4
Long-Term Drift Over 8 hours (μm) ＜6
Power Requirement ±15VDC, ≥3A
Digital Interface XY2-100
Operation Temperature（℃） 25±10
