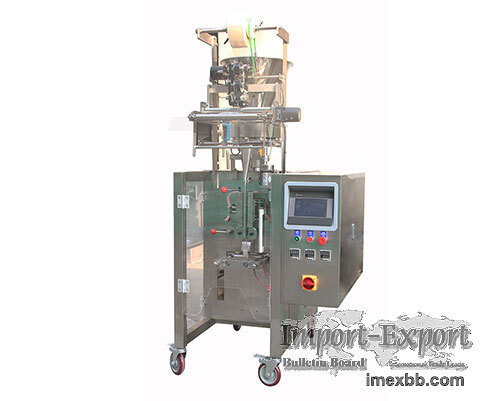

VERTICAL GRANULAR PACKING MACHINE

An automatic granule vertical packing machine for particulate matter is a kind
of VFFS series packing machine, which mainly aims at the packaging of those
loose, non-sticky, and fine granular products. Having the advantages of
convenient operation, compact design, and a small floor area, the vertical
granular packing machine is widely used in the food, medicine, and chemical
industries. Such as soup, granule, dryer, monosodium glutamate, sugar, cereal,
seeds, melon seeds, sesame, etc.
GRANULE VERTICAL PACKING MACHINE TECHNICAL PARAMETERS
Machine Model GN-LB-K300
Seal Type Flat / Teeth / Round etc.
Volume Measure Type Screw Motor / Cup
Power Supply 220Vac 50Hz
Power 2.5KW
Bag Size 30-150mm(Width), 30-165mm(Length)
Machine Dimension L1100 × W850 × H1800mm
Vertical Granular Packing Machine Electrical Configuration
No. Name Brand
1 PLC XINJIE CHINA
2 Touch Screen XINJIE CHINA
3 Proximity Switch YANG MING TAIWAN
4 Motor TAIBAN TAIWAN
5 Thermocouple SHANGHAI
6 Inverter XINJIE CHINA
7 Solid-state Relay YANG MING TAIWAN
8 Motor SUOENG CHINA
9 Contactor SCHNEIDER，FRANCE
10 DC Power Supply MINGWEI TAIWAN

Granule Vertical Packing Machine Features
01
The granule vertical packing machine is controlled by PLC, touch screen and
frequency converter, with reliable operation and convenient operation;

02
The bag length and cursor are controlled accurately;

03
By changing the volumetric cup to meet the packaging of different measurements,
the packaging of products is both reliable and practical;

04
The vertical form fill and seal machine has the advantages of being fast,
accurate, economic, and useful;

05
By changing the heat sealing structure, the packaging bag can realize three
side sealing, four side sealing or back sealing.

As a leading packaging machine company in China, We provide l sealer shrink
wrap machine, side sealing and cutting machine, sugar packing machine, salt
packing machine and etc. For more information, please feel free to contact us!

Minimum Order: 30 sets
