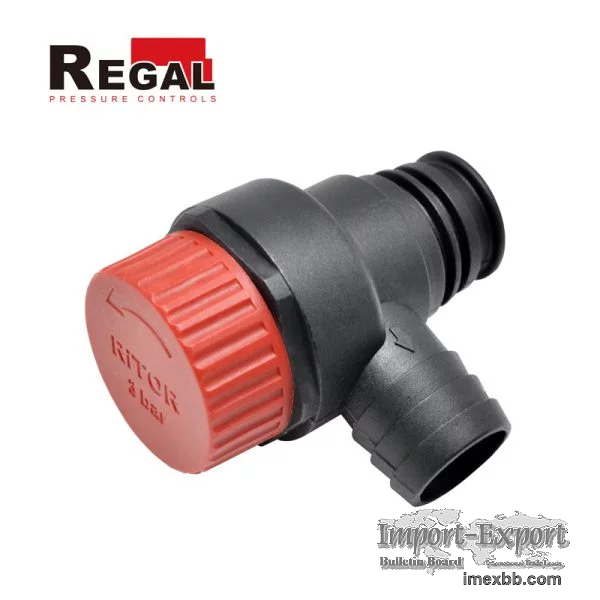

Water Heater Safety Valve Spring Loaded Pressure Release

Water Heater Safety Valve Features
The VA-F002 is a spring loaded water heater safety valve, it is not only can be
used in the water heater but also can be used in boilers and furnaces. This
model has 1*direct and 1*G1/4 thread pressure relief ports, for more details
you can see the pictures or contact us. Meanwhile, it can cover the water
temperature from 0 to 85℃ and the environment temperature from -40 to 110 ℃.
High-quality material with Max. 8Bar pressure capability.

When the heater heats the water, the device will generate pressure that will
increase the risk of the parts damage. So, we need the safety valve to release
the pressure to protect the devices. Our water heater safety valve relief
pressure range is the same as the standard on the market, which is 3 Bar. So,
it can be the universal valve to sell on the market only if the connector is
suitable. This model connector is 1*direct and 1*G1/4 thread pressure relief
ports, if you need to see more pressure relief valve types, welcome to contact
us or visit the product page.

Meanwhile, the VA valve series use the PA66 with 30% glass fiber, which has a
very good performance for working. This kind of material design of compressive
strength can reach 8 bar.



Water Heater Safety Valve Specification


Model Number VA-F1002 water heater safety valve
Water Outlet Type 1* Direct inset & 1*G1/4
Pressure Relief Range 2.7-3.3 Bar
Withstand voltage 10 MPa (10 Bar)
Water Temperature 0℃ to 85℃
Operating Temperature -40 to 110℃
Manual pressure relief time 20000 cycles
Shell Material PA66+30%
Diaphragm Silicon
Working medium Water

Minimum Order: 10 pieces
