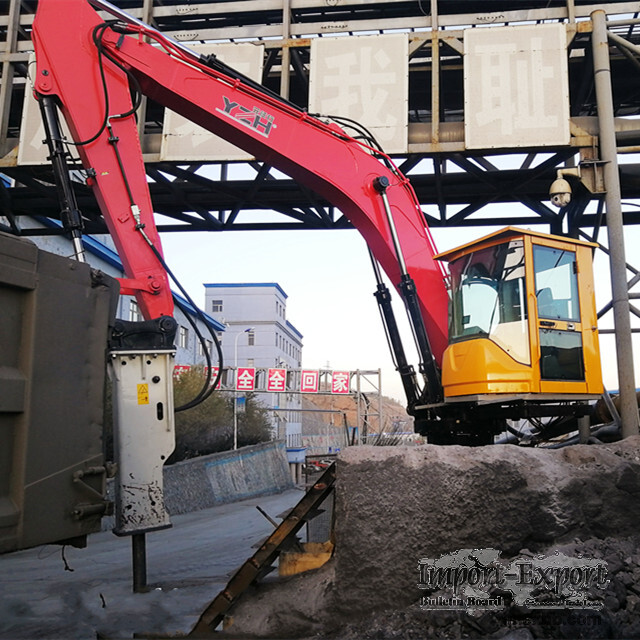

YZH Mining Stationary Rockbreaker Boom

The equipment is mainly composed of five core components:

1. Heavy-duty base: Provides solid support. 2.

2. High-strength working arm: Execute crushing action. 3.

3. Hydraulic Crushing Hammer: the core working part, performs the task of stone
crushing. 4.

4. Hydraulic Power Station: Provides power for the whole system. 5.

5. Intelligent control system: realizes precise operation and safety control.

Core features and advantages:

1. Designed to solve crusher jamming:

Core Features: Specially designed to efficiently solve crusher inlet jamming
problems.

Benefits: Quickly breaks up clogged large rocks, significantly **improves
crusher efficiency**, reduces downtime, and extends crusher service life.

2. Ultra-strong stabilizing base:

Structure: adopts heavy duty steel structure base.

Installation: Firmly anchored on top of reinforced concrete foundation.

Advantage: Even withstanding the continuous high-intensity impact of the
crushing hammer, it can ensure the long-term stable operation of the equipment
without the risk of displacement.

3. High-precision and wide-range operation boom:

Performance: Provide high-precision positioning and control capability.

Customization: The length and working range of the boom can be flexibly
customized according to the specific crushing chamber size.

Advantage: Ensure that the crushing hammer can cover and optimize access to
the entire crushing chamber area in all directions, eliminating dead corners.

4. Large angle hydraulic slewing with flexible articulation:

Rotation capacity: 170° hydraulic rotation as standard (360° full rotation
optional).

Advantage: Smooth side-to-side swing operation of the crusher inlet area,
dramatically expanding the effective working range and improving processing
flexibility.

5. Wide range of hammer compatibility:

Compatible with 500kg to 3000kg hydraulic hammers.

Advantage: Provide strong material adaptability, according to the rock
hardness, block size and flexible selection of hammer head, efficient
processing of various types of materials.

6. Intelligent electro-hydraulic control system:

Operation mode: support joystick near control or wireless remote control
operation.

Technology: Adopt advanced proportional control technology.

Advantage: Ensure safe, precise and user-friendly operation, the operator
can comfortably and efficiently carry out crushing operation in a location far
away from the dangerous area of falling rocks.

7. Comprehensively improve efficiency and safety:

Reduced manpower and increased efficiency: Significantly reduces the need
for manual intervention in clearing or reliance on small blasting.

Safety: Significantly reduces the risk of injury to personnel from falling
rock or jammed material handling.

Continuous production: minimize crusher downtime due to jams and ensure
continuous production.
