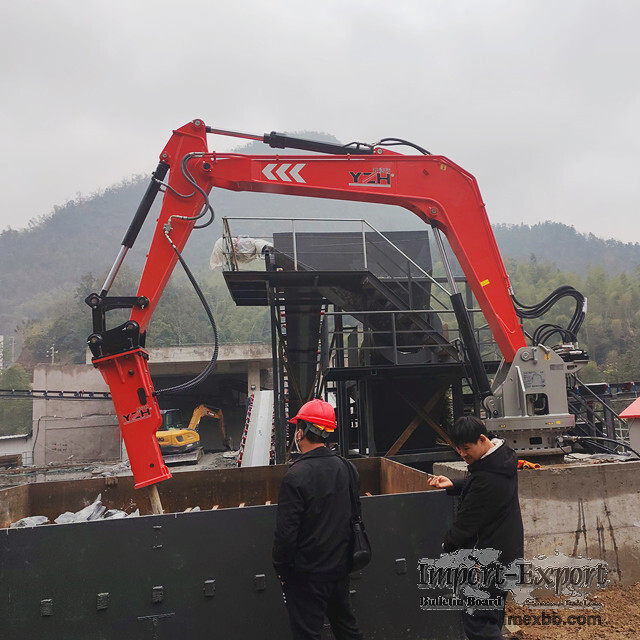

YZH WHEN1510 Stationary Pedestal Rockbreaker Boom

Below is a detailed introduction to the YZH WHEN1500 fixed hydraulic demolition
arm, covering its features, advantages, and case studies:
Main parameters of  YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
Model No. WHEN1510
Boom weight(without hammer) kg 17500
Max.Horizontal Working radius mm 17250
Max.vertical working radius mm 14640
Min.vertical working radius mm 940
Max.Height mm 9300

The Features of  YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
Intelligent Multi-Mode Control: Supports cab operation, wireless/wired remote
control, and fiber optic + 5G remote video monitoring with a control range of
10-20km. Paired with a high-performance controller, it enables precise
positioning and flexible control, offering both wired and wireless dual-mode
operation.
Robust and Durable Structure: Features high-strength rectangular steel boom
beams, large-diameter cylinders, and reinforced pins. The slewing motor
incorporates buffer braking. Equipped with a high-performance shock absorption
system, core components utilize international brands, structural parts undergo
strength verification and aging treatment, and welding processes are mature.
High Adaptability: Modular design allows interchangeable attachments like
breakers and grabs. Suitable for open-pit/underground mining, metallurgy,
cement, and other applications. Capable of long-term operation in harsh
environments including corrosion, explosion-proof zones, and high altitudes.
Wide horizontal working range with selectable rotation angles.
 Optimized Parameters: Overall weight approximately 1500-1550kg. Hydraulic
hammer rod diameter compatible with mainstream specifications. Selectable
rotation angles of 170° or 360°. Compatible with 880V motor drive. High
protection rating.

The  Benefits of YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
 Safety and Environmental Protection: Remote operation keeps personnel away
from hazardous zones, eliminating manual blockage clearance risks. Electric
drive produces zero exhaust emissions, reduces energy consumption by over 60%
compared to traditional diesel equipment, and operates at low noise levels.
High Efficiency & Low Consumption: Reduces production line downtime by 5%-20%,
boosts crusher output by 20%. Operating costs are only 1/6th of fuel expenses
for equivalent-power excavators, with failure rates reduced by 85% compared to
traditional diesel equipment and low maintenance expenses.
Superior Quality & After-Sales Support: Certified with ISO9001 and EU CE
standards, offering turnkey solutions, 24/7 online customer service, and
support for customized requirements.

The Application of  YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
1. Gold Mine of China Gold Group: Used for secondary crushing at the jaw
crusher feed inlet, eliminating material jams and manual clearance risks.
Production line downtime reduced by 15%, primary crushing output increased by
18%, and energy costs cut by 65%.
2. Ansteel Group Metallurgical Plant: Adapted for high-temperature slag
crushing in ladle furnaces. Remote operation prevents heat exposure hazards.
Modular attachment replacement enables both crushing and grabbing functions.
Production line failure rate decreased by 80%, maintenance costs reduced by
70%.
3. Russian Open-Pit Quarry: Used for crushing oversized ore at screen openings,
it operates stably in low-temperature, high-dust environments. With a remote
control range of 15km, the equipment runs continuously without failures,
delivering over 50% higher overall efficiency than traditional equipment.

Minimum Order: 1 sets
