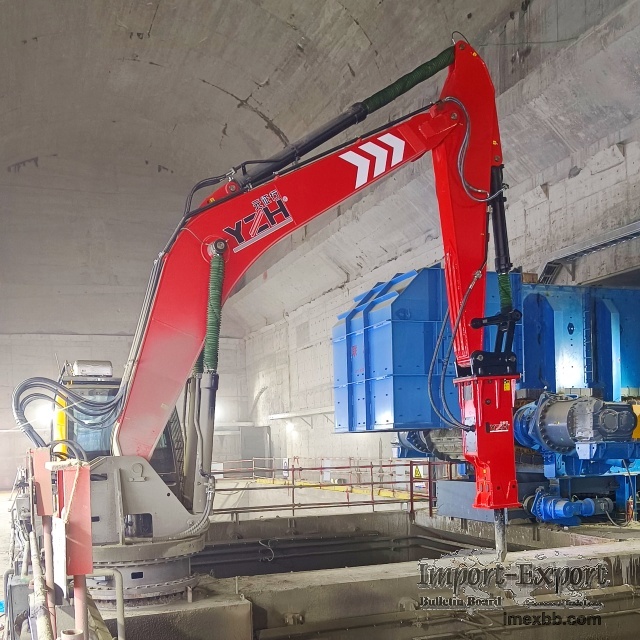

YZH WHC880 Stationary Hydraulic Rockbreaker Boom for Mine Crusher Stations

In the fiercely competitive industrial market, high-performance and reliable
equipment is the key to boosting enterprises’ core competitiveness. The
Stationary Hydraulic Rockbreaker Boom System features numerous outstanding
advantages, making it a dependable solution for industrial production. Below is
a detailed introduction to the WHC880 Stationary Hydraulic Rockbreaker Boom
System.

Main parameters
Model No.:WHC880
Boom Weight (without hammer):7511kg
Max. Horizontal working radius:11300mm
Max. Vertical working radius:8960mm
Min. Vertical working radius:3150mm
Max. Height:7390mm
Max. Working Depth:7270mm
Rotation:360°

Features
, 1.Intelligent Operation
Flexible control enables fixed-point positioning; video monitoring & 10–20 km
remote control provide diverse operation modes. High-performance controller
supports multi-parameter fusion.
2.Energy Saving & Environmental Protection
Low-noise hydraulic crushing, electric motor drive for clean energy use; energy
costs reduced by over 60% vs diesel equipment.
3.High Efficiency
Premium hydraulic rockbreaker greatly raises productivity. Integrated optimized
system delivers superior performance, easy maintenance, and 85% lower failure
rate than diesel alternatives.
4.Strong Adaptability
One machine fits multiple front attachments. Modular design adapts fast to
varied needs, stable long-run operation under corrosive, explosion-proof and
high-altitude harsh conditions.
5.Reliable Quality
High-efficiency shock absorber protects machine and foundation from impact
loads. Internationally branded core parts ensure reliability. Simulation-
optimized layout with high safety factor supports 24h continuous work.

Main Components

A complete Stationary Hydraulic Rockbreaker Boom System mainly consists of four
core assemblies:
1.Pedestal & Slew Assembly It includes heavy-duty steel base, slewing bearing
and slewing cylinder, which is anchored to concrete foundation to support the
whole boom and realize horizontal rotation.
2.Articulated Boom Assembly Made of high-strength alloy steel, the articulated
boom set covers main boom, secondary boom and all hydraulic luffing cylinders,
enabling flexible positioning of the hydraulic hammer within full working
range.
3.Hydraulic Rockbreaker Hammer The impact core of the system. Driven by high-
pressure hydraulic oil, it delivers continuous high-frequency impact force to
break oversized rocks and eliminate crusher blockages.
4.Hydraulic Power Unit & Control System The hydraulic power pack supplies
stable hydraulic power for all movements. Operators can control the boom via
fixed cabin, wired control panel or wireless remote control, with complete
overload and temperature protection functions.

Main application scope
Our stationary hydraulic rockbreaker boom fits extensive industrial scenarios:
mines, quarries, sand yards, smelters, foundries, cement plants, power plants,
ports, chemical factories, as well as highway, railway and water conservancy
construction. It also handles railway wagon material unloading and slag
disposal work. The machine greatly boosts production efficiency and lowers
labor costs for factories.

About us
YZH supports full customization to meet your personalized demands: we offer
standard units and tailor-made crushing machinery adapted to your actual
working conditions, with customized solutions for special environments and
unique operational needs. For reliable industrial crushing equipment, choose
YZH Stationary Hydraulic Rockbreaker Boom System. We are ready to cooperate
with you for win-win results.

Minimum Order: 1 sets
